Measurement accuracy: Level 1.5
Withstand voltage: 2kV 50Hz for 1min
Operating ambient temperature: - 25 ° C~+55 ° C
Enclosure protection grade: IP44 IP56

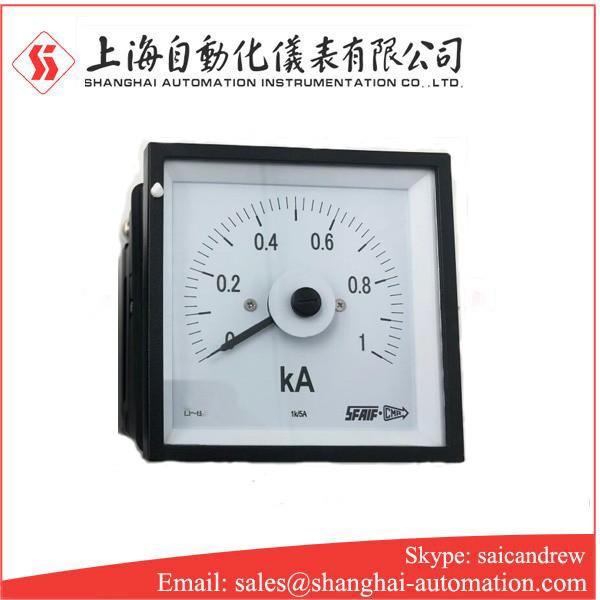

Q144-RZC-G Q96-RZC-G Q72-RZC-G Ammeter AC
Characteristics of Q144-RZC-G Q96-RZC-G Q72-RZC-G Ammeter AC
Q144-RZC-G Q96-RZC-G Q72-RZC-G Ammeter AC is used to measure the current and voltage of AC network.
Measurement accuracy: Level 1.5
Withstand voltage: 2kV 50Hz for 1min
Operating ambient temperature: - 25 ° C~+55 ° C
Enclosure protection grade: IP44 IP56, applicable to Q72 and Q96 instruments with sealing cover
Working vibration resistance: 2~100Hz
Acceleration ≤ 0.7g
Relative humidity: ≤ 98% RH
Rated frequency: 50Hz; 60Hz; 400Hz
Model of Q144-RZC-G Q96-RZC-G Q72-RZC-G Ammeter AC
Model | Unfold angle | Overall dimension | Opening size | Working power supply | Remark |
Q144-RZC-G | 240° | 72×72×80 | 68+0.5×68+0.5 | DC24V ±20%
| The dial is white or black; The light shall be white, green and red. With positive and negative scales, the scale lines can be distinguished by red lines and green lines. |
Q96-RZC-G | 96×96×80 | 92+0.5×92+0.5 | |||
Q72-RZC-G | 144×144×80 | 138+0.5×138+0.5 |
