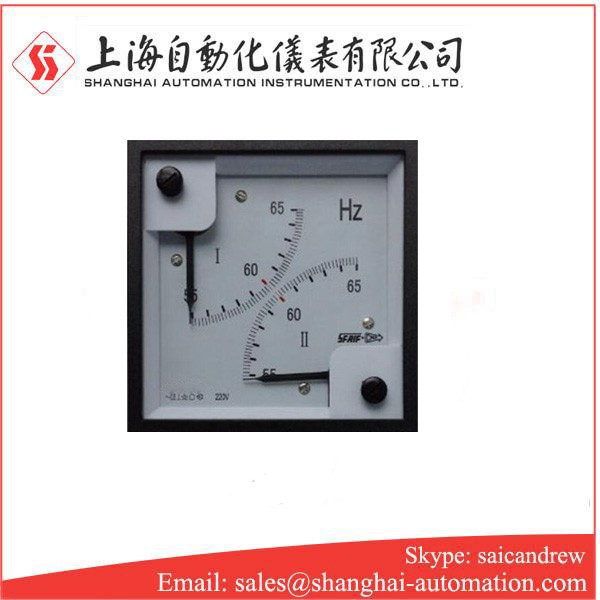

Q96D-HCA Dual input&indication frequency meter with alarm

                  Q96D-HCA Dual input&indication frequency meter with alarm

Overview

 Q96D-HCA Dual input&indication frequency meter with alarm  is used for power grid frequency measurement and out of limit alarm output.

Application of Q96D-HCA Dual input&indication frequency meter with alarm

Users should make careful selection and installation. When installing, they should consider different situations for different industries and units as much as possible, so the specifications and parameters of the detectors used are also different. In order to achieve the best ideal results, it is necessary to make a detailed understanding and detailed investigation of the actual situation of users, so as to minimize false alarms and make the detector play a more effective role.

Feature of Q96D-HCA Dual input&indication frequency meter with alarm

Accurate reading, accurate measurement, small volume, small weight and easy installation

Main tech data of Q96D-HCA Dual input&indication frequency meter with alarm

Deflection angle: 900

Ambient temperature: - 25 ℃ to + 55 ℃

Enclosure protection: ip42

Vibration resistance: 0.7G

Accuracy level: 0.5

Power consumption: ≤ 2Va

Rated voltage: UN ± 15% (UN: 100V, 220V, 380V)

Weight: 1.1kg

Alarm accuracy:

Upper limit 45Hz ± 0.5% or55hz ± 0.5%

Lower limit 55Hz ± 0.5% or65hz ± 0.5%

Switching capacity: 250VAC, 1A

measuring range: 45-50-55HZ, 45-60-65HZ

Rated voltage: 100Vor220V or380V

Note: Any special design or question of Q96D-HCA Dual input&indication frequency meter with alarm , kindly contact the manufacturer for more details.
