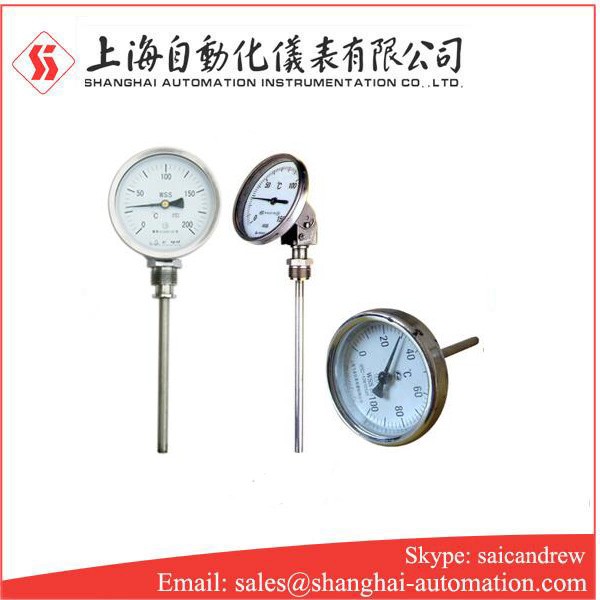

WSS-481 WSS-581 WSS-482 WSS-582 Bimetallic temperature meter

WSS-481 WSS-581 WSS-482 WSS-582 Bimetallic temperature meter

Overview

WSS-481 WSS-581 WSS-482 WSS-582 Bimetallic temperature meter is a temperature sensor for on-site display and remote transmission of electric signals. It can not only indicate temperature on site, but also transmit thermocouple (resistance) and two-wire temperature transmitter signals. As a new generation thermometer, it can be widely used in metallurgy, petrochemical, electric power, light textile, food, national defense and other industrial sectors.

Material of WSS-481 WSS-581 WSS-482 WSS-582 Bimetallic temperature meter

The protective tube, joint head and locking bolt of bimetallic thermometer are all made of 1Cr18Ni9Ti material. The case is made of aluminum plate, and the surface is processed by black electrophoresis. The cover and case are made of ring double-layer rubber ring thread sealing and locking structure. Therefore, the overall waterproof and anti-corrosion performance of the instrument is good. The radial instrument is made of elbow type structure, which is novel, light and beautiful. Bimetallic thermometer is a field detection instrument for measuring medium and low temperature, which can be used to directly measure the temperature of liquefaction and gas. Compared with the glass mercury thermometer, it has the advantages of no mercury harm, easy reading, firmness and durability.

Working principle of WSS-481 WSS-581 WSS-482 WSS-582 Bimetallic temperature meter

The bimetallic thermometer is a single needle type indicating thermometer that uses a bimetallic sheet wound into a spiral tube with one end fixed and the other free end connected with the pointer to rotate with the change of temperature and drive the pointer to rotate to indicate the temperature.

Main tech data

The nominal diameter of shell: 100mm, 150mm

Position characteristics:  8 Universal type
