Grade 2.5
Splash proof,
Vibration resistant
Relative humidity: <98%RH

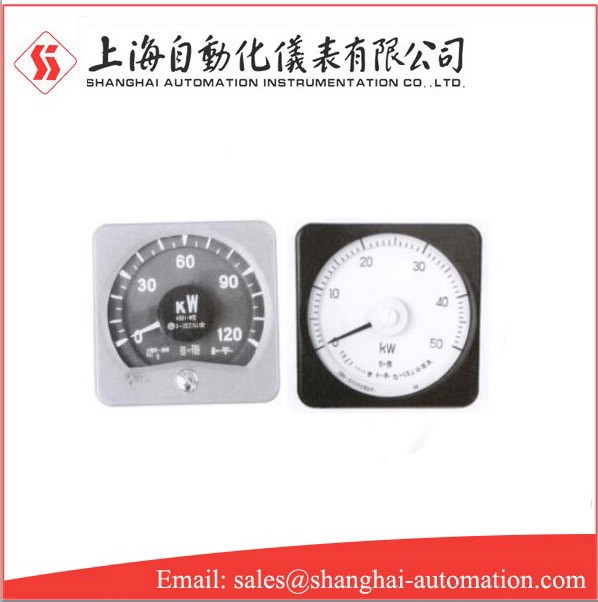

13D1-W 13L1-W 45D1-W 45L1-W Power meter
Overview of 13D1-W 13L1-W 45D1-W 45L1-W Power meter
It is embedded and installed on ships, locomotives, power stations, mining metallurgy, petrochemical industry and other mobile power equipment, and is used to measure AC and DC current and voltage, AC overload current, frequency, power, reactive power, power factor and insulation resistance. It can also be used as a secondary instrument for converting non electricity into electricity
Main tech data of 13D1-W 13L1-W 45D1-W 45L1-W Power meter
Grade 2.5, splash proof, vibration resistant.
Service conditions: ambient temperature- 25～+55℃； Relative humidity: <98%RH
Measuring range of 13D1-W 13L1-W 45D1-W 45L1-W Power meter
Measuring range | Access method |
5, 10, 20, 30, 50A | Direct access |
5,10,20,30,50,75,100,150 200,300,400,600,750,800A 1,1.5,2,3,4,5,6,7.5,10kA | Connected through current transformer (secondary current 5A) |
30,150,250V | Direct access |
450V | Connect via 380/ 100V or 380/ 127vpt |
