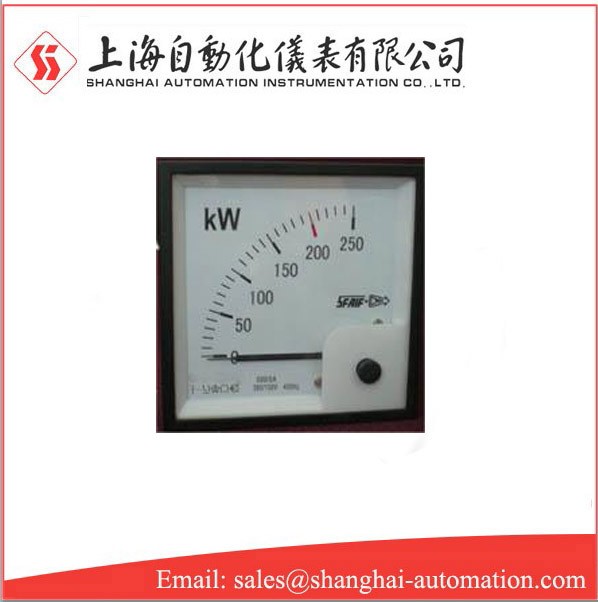

Q144-WMCZ Q96-WMCZ Q72-WMCZ Single phase power

Q144-WMCZ Q96-WMCZ Q72-WMCZ Single phase power

Overview

Q144-WMCZ Q96-WMCZ Q72-WMCZ Single phase power is a magnetoelectric shaft tip and bearing structure. The AC meter is made of a transistor rectifier circuit attached to the DC meter, which consumes less power.

Main technical performance of Q144-WMCZ Q96-WMCZ Q72-WMCZ Single phase power

Environmental conditions: -25 ~ +40 ° C (AC table 0~ +40*c)

Relative humidity: 25% - 80%

Mechanical resistance: it can withstand an acceleration of 150m/ s? And the impact frequency is 80-120 times per minute, which lasts for 2 hours.

Withstand voltage: AC 50Hz, 2000V, lasting for 1 minute.

Weight: less than 1kg

Working position: vertical (⊥) use.

Accuracy: 1 Level 5

Ambient temperature range: --25c- +55 "C

Enclosure protection: according to ip42/52

Vibration resistance: 0 7g

Instrument scale: black scale with white background. If the setting value is required, a red line can be drawn.

It can be set as 10-20% scale of negative power

Rated frequency: 50Hz: 60Hz

Instrument installation: fixed with four diagonal brackets
