Model: D500/7D
Order number: 0812200, 0812500,0812700 0812800,0814100,0814200,0814300,0814400
0814500,0814600,0814700,0814800,0814900
0802200,0802500,0802700,0802800
08141000814200,0814300,0814400
0804500,0804600, 0804700,0804800
0804900
Ambient temperature: -25～55℃
Medium temperature: -25～80℃

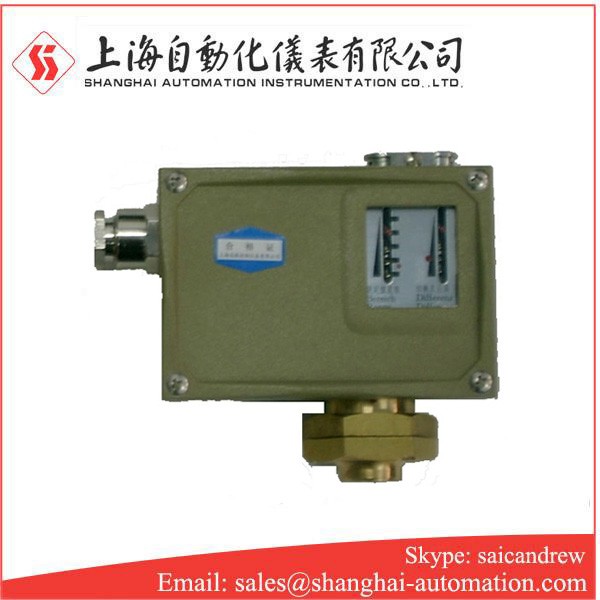

D500/7D Pressure controller
Overview
D500/7D Pressure controller adopts diaphragm sensor. It can be used for neutral gases such as air and liquid media such as water, hydraulic oil, lubricating oil and light fuel oil. D500/7D Pressure controller are divided into adjustable and non-adjustable The adjustment or non-adjustable range is 0... 25 MPa. It can be used for neutral oils, gaseous media and water.
Working principle of D500/7D Pressure controller
During the manufacturing and production of controller products, each product has its specific working pressure range (range). Within this range, the customer can preset the pressure value that needs to be switched, which is also known as the set point of pressure switch. After being connected to the system, when the pressure of the measured medium is greater than (less than) the set point, the sensor generates a step-by-step signal to trigger the microswitch inside the controller to open (close) the system loop. The controller is usually equipped with an SPDT type microswitch. Each SPDT Switch can be set to normally closed or normally open state. When it is set to normally open state, when the microswitch acts, the system circuit will be closed. Normally closed state is to disconnect the system circuit.
Features of D500/7D Pressure controller
High control sensitivity.
Can be used for vacuum
Main tech data of D500/7D Pressure controller
The control system is of ultra-compact design, which allows the switching frequency to be higher than 100 times/min and the vibration resistance is particularly good.
Working viscosity: <1×10-3m2/s
Switch element: micro switch
Ambient temperature: -25～55℃
Medium temperature: -25～80℃
Shell protection grade: IP54 (complies with DIN40050, equivalent to IP54 in GB4208)
Installation position: the pressure port is vertically downward (allowed to tilt 150)
Vibration resistance: Max: 100m/s2
Repeatability error: ≤2.5%
Contact capacity: AC 220V 6A (resistive)
Specification
D500/7D Switching difference is not adjustable
Setpoint section Range MPa（kPa） | Switching difference not greater than | Maximum allowable
Allowable pressure
Power *MPa（kPa） | Switch switching times
Times / minute | Pressure sensor Material | Interface
Internal thread | Weight kg | order number | ||
Lower limit of setpoint range MPa（kPa） | Upper limit of setpoint range MPa（kPa） | Shell | diaphragm | normal type | |||||
(0…2.5) (0…6) (0…16) (0…25) | (0.3) (0.4) (0.4) (0.4) | (0.4) (0.6) (0.8) (0.9) | (50) (50) (50) (50) | 10 | Galvanized steel | Nitrile rubber | G1/4″ G1/4″ G1/4″ G1/4″ | 1.0 1.0 1.0 1.0 | 0812200 0812500 0812700 0812800 |
0.005…0.06 0.005…0.1 0.005…0.16 0.005…0.25 | 0.003 0.003 0.003 0.004 | 0.006 0.009 0.012 0.015 | 1.5 1.5 1.5 1.5 | 40 | brass | G1/4″ G1/4″ G1/4″ G1/4″ | 1.15 1.15 1.15 1.15 | 0814100 0814200 0814300 0814400 | |
0.03…0.4 0.03…0.6 0.05…1 | 0.02 0.03 0.03 | 0.04 0.05 0.06 | 4 4 4 | G1/4″ G1/4″ G1/4″ | 0.85 0.85 0.85 | 0814500 0814600 0814700 | |||
0.1…1.6 0.1…2.5 | 0.04 0.04 | 0.12 0.15 | 5 5 | G1/4″ G1/4″ | 0.85 0.85 | 0814800 0814900 | |||
D500/7D Switching difference adjustable
Setpoint section Range MPa （kPa） | Switching difference not greater than | Maximum allowable
Allowable pressure *MPa （kPa） | Switch switching times
Times / minute | Pressure sensor Material | Interface
Internal thread | Weight kg | order number | ||
Lower limit of setpoint range MPa（kPa） | Upper limit of setpoint range MPa（kPa） | Shell | diaphragm | normal type | |||||
(0...2.5) (0...6) (0…16) (0…25) | (0.8...2.5) (0.9...4) (1.1...12) (1.1...20) | (1.1…2.5) (1.5…4) (2.3…12) (2.8…20) | (50) (50) (50) (50) | 10 | Galvanized steel | Nitrile rubber | G1/4″ G1/4″ G1/4″ G1/4″ | 1.05 1.05 1.05 1.05 | 0802200 0802500 0802700 0802800 |
0.005…0.06 0.005…0.1 0.005…0.16 0.005…0.25 | 0.009...0.05 0.011...0.08 0.013...0.12 0.014...0.2 | 0.016…0.05 0.018…0.08 0.025…0.12 0.025…0.2 | 1.5 1.5 1.5 1.5 | 40 | brass | G1/4″ G1/4″ G1/4″ G1/4″ | 1.20 1.20 1.20 1.20 | 0814100 0814200 0814300 0814400 | |
0.03…0.4 0.03…0.6 0.05…1 | 0.05...0.2 0.06...0.4 0.06...0.6 | 0.05…0.2 0.06…0.4 0.06…0.6 | 4 4 4 | G1/4″ G1/4″ G1/4″ | 0.9 0.9 0.9 | 0804500 0804600 0804700 | |||
0.1…1.6 0.1…2.5 | 0.12...1.2 0.12...2 | 0.12…1.2 0.12…2 | 5 5 | G1/4″ G1/4″ | 0.9 0.9 | 0804800 0804900 | |||
Note: Any special design or question of D500/7D Pressure controller, kindly contact the manufacturer for more details.
