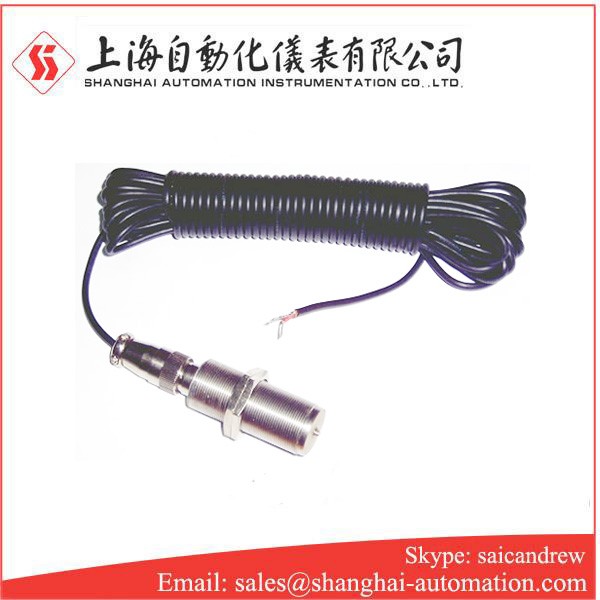

SZMB-5 SZMB-9 Speed sensor

                                                               SZMB-5 SZMB-9 Speed sensor

Overview

SZMB-5 SZMB-9 Speed sensor can convert angular displacement into electrical signal for counter counting. It can measure the rotational speed and linear speed of various magnetic conducting materials, such as gears, impellers, disks (or shafts) with holes (or slots, screws). The sensor has the advantages of small volume, strong and reliable, long service life, no power supply and lubricating oil, and can be used with general secondary instruments.

Working principle

SZMB-5 SZMB-9 Speed sensor adopts the principle of magnetoelectric induction to measure the speed. When the gear rotates, the magnetic line of force passing through the sensor coil changes and generates a periodic voltage in the sensor coil. Its amplitude is related to the speed. The higher the speed, the higher the output voltage (section 0 ~ A), and the output frequency is directly proportional to the speed. The speed of the magnetoelectric speed sensor increases further, the magnetic circuit loss increases, and the output potential has become saturated (section a ~ b). When the speed exceeds B, the magnetic circuit loss increases and the potential decreases sharply.

Features of SZMB-5 SZMB-9 Speed sensor

The coil adopts a special structure, which enhances the anti-interference ability and is widely used. The sensor has strong output signal, good anti-interference performance, no power supply and convenient installation and use.The operation and maintenance cost of the magnetoelectric speed sensor is low. The measurement is completely realized by magnetoelectric induction. At the same time, the operation of the magnetoelectric speed sensor does not need mechanical action and lubrication. The magnetoelectric speed sensor has the advantages of compact structure, small volume and convenient installation and use. It can be used with various secondary instruments.

Main tech data of SZMB-5 SZMB-9 Speed sensor

Output waveform: approximately sine wave (≥ 60R / min)

Output signal amplitude: ≥ 300mV at 60R / min

Clearance between sensor core and measured gear tip δ= 0.5mm

Modulus of tested gear m ≥ 2, number of teeth z = 60

Material electrical steel

The signal amplitude is directly proportional to the speed and inversely proportional to the clearance between the iron core and the gear top.

Measurement range: 50 ~ 5000Hz

Transmission distance: 10M

Service time: continuous use

Ambient temperature: - 20 ~ + 60 ℃

Note: Any special design or question of SZMB-5 SZMB-9 Speed sensor, kindly contact the manufacturer for more details.
