Overview

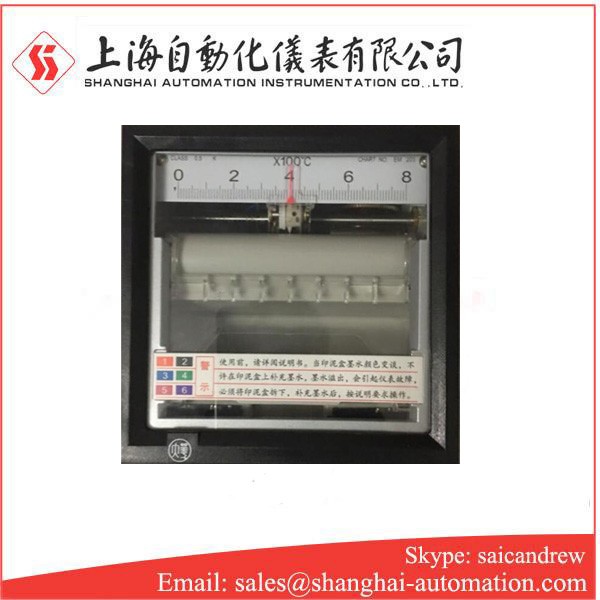

EH Recorder is a highly reliable recorder produced by using information accumulated for many years and introducing Z new electronic technology and precision machinery.

According to various combinations, there are more than 900 models for selection. The recording methods include single pen, double pen and three pen writing, and line punctuation from 6 to 12 o'clock and 24 o'clock; Adjustment modes include 2-position, 3-position and PID; The alarm modes include upper limit type, lower limit type and upper and lower limit type. With these combinations, we can provide the high-quality recorders we are looking forward to. It is used for all temperature, pressure, flow, meteorological observation, measurement and control.

Working principle

Features of EH Recorder

High accuracy: the accuracy of industrial recorder is ± 0.5%. With Z's new electronic technology and high reliability design, it can provide instructions according to users' needs

Products with a temperature of ± 0.25% of the input range. Z high precision is obtained in industrial recorder.

Long life: high resolution, long life balance sliding wire resistor

High reliability: good sealing, high reliability input change-over switch

Readability: install standard lighting

Clear record: the critical damping curve is clear

Adaptability: rich and complete selection

Simple maintenance: unit structure easy to maintain and repair

Flexible operation: firm structure and convenient front operation

Main tech data of EH Recorder

Input signal: mV-DC3mV above, thermoelectric group above -30℃ (Pt100)

Scale length: 180mm

Indication accuracy: ±0.5% of the input range

Indicated hysteresis: 0.25% of the input range

Balance time: the input range moves about 2S (50Hz)

Recording paper: folded - effective recording 180mm (full width 200mm) full length 20m

            Pen writing style—single, double, and triple

            Dot type - 6 o'clock, 12 o'clock, 24 o'clock

            Pen writing style: fiber pen continuous recording; 1st pen (red), 2nd pen (green), 3rd pen (blue)

            Dotting type: each dot is dipped in ink pad to record the dots

            Dot type: 6 points: 1 red, 2 black, 3 sky blue, 4 green, 5 brown, 6 purple

                  12:00: 1 red, 2 black, 3 sky blue, 4 green, 5 brown, 6 purple, 7 orange, 8 grey, 9 blue, 10 grass green, 11 pink, 12 red

                  24 o'clock repeat 12 o'clock and 1~24 o'clock digital printing

Feeding speed: 12.5, 25, 50, 100mm/h4 speed and fast Fast

Dotting time: 6S (50Hz), 5S (60Hz)

Pen interval: about 4mm (multiple pens)

Lift and drop pen (pen type): manual, each pen is independent

Power supply: AC220V 50Hz

Allowable voltage variation: 10%~15% of rated value

Ambient temperature: 0℃~50℃

Relative humidity: 10%~90%RH

Allowed signal source resistance:

DC voltage input: 3mV＜range voltage≤500mV-10KΩ or less

                  500mV＜range Voltage≤100mV-10KΩ or less

                  Thermocouple input: below 10KΩ

                  Thermocouple input: 10Ω or less per line

Input resistance: DC voltage input: 3mV≤range voltage≤500mV-about 8MΩ

                        500mV＜range Voltage≤100mV-about 1MΩ

                        Thermocouple input - about 8Ω

Insulation resistance: DC500V 20MΩ or more between the measurement terminal and the ground terminal

            DC1000V 20MΩ or more between the power terminal and the ground terminal

            DC1000V 20MΩ or more between measurement terminal and power terminal

Dielectric strength: AC500V 1min between the test terminal and the ground terminal

            AC1000V (100V series power supply) between the power terminal and the ground terminal for 1min

                        AC1500V (200V series power supply) 1min

            AC1000V (100V series power supply) between the measurement terminal and the power terminal for 1min

                        AC1500V (200V series power supply) 1min

Model tabel of EH Recorder

Note: Any special design or question of EH Recorder  Recorder,kindly contact the manufacturer for more details.
