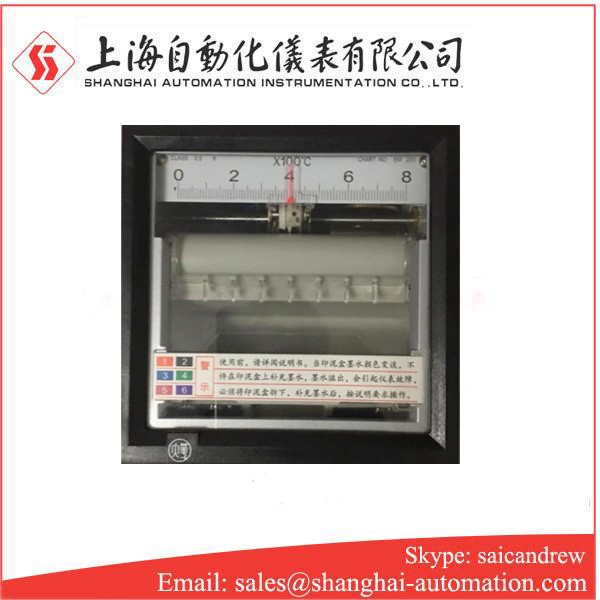

EL Recorder

EL Recorder

L series instruments are manufactured by applying the latest electronic and mechanical technology, with high-quality and reliable small recorders, recording regulators and recording alarms.

Basic varieties have recording and recording alarm devices; The recording methods include single stroke, two stroke, three stroke and six point dot type, and the adjustment methods include two position type, three position type, proportional position type and PID type; Alarm modes include upper limit type (lower limit type) and upper and lower limit type; Input types include Ma, MV, thermocouple, thermal resistance, etc.

The size specified in DIN standard recommended by IEC is 144MM * 144MM, which has the advantages of small volume, light weight and convenient handling.

Miniaturization and multifunction

It has many excellent properties, such as recording amplitude of 100mm, accuracy of ± 0.5%, full-scale setting alarm and so on.

High reliability components are adopted, aiming at no maintenance; Sealed conductive plastic sliding wire resistor, input converter of dry spring switch and self-lubricating bearing are used.

The use of guide brush scale plate is convenient for scale exchange and simple inspection.

Clear record

Cheap and convenient fiber recording pen is used to record clearly and continuously, which is convenient for maintenance.

Rich and complete options

In order to give further play to the function of L series instruments, there are rich options such as high-speed meter and signal transmission.

According to the model classification method, correctly write the model of the instrument

According to the signal input type of the matched detection instrument, the graduation number and measurement range shall be correctly written according to the list of graduation number range.

The selection of optional parts must be negotiated with the technical department.

If you order a PID recording regulator, in addition to indicating the model, input type and division number, you must also write the range of output signal.

If the user orders this instrument to replace the old instrument with overall dimension of 160 * 160 (mm), please put forward it when ordering.

Our factory provides a special frame, so that the opening size of the original instrument screen can be installed without changing.
