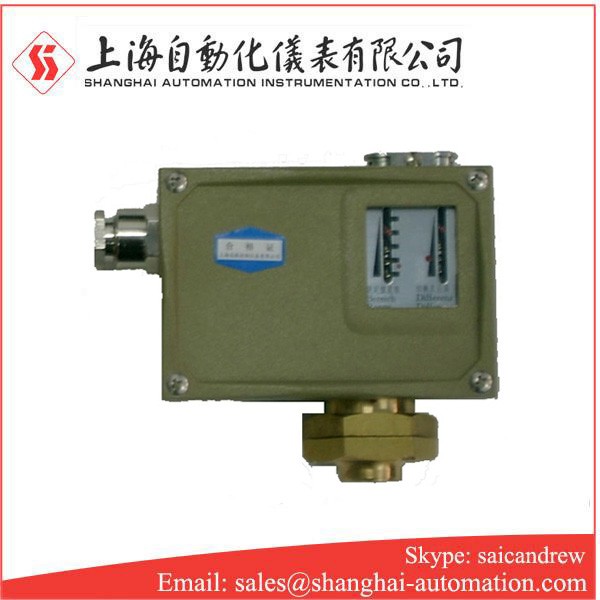

Product name：Explosion-proof Pressure controller
Order number: 0852280 0852580 0852780 0852880 0854180 0854280 0854380 0854480 0854580 0854680 0854780 0854880 0854980 0842280 0842580 0842780 0842880 0844180 0844280 0844380 0844480 0844580 0844680 0844780 0844880 0844980
Ambient temperature: -25～55℃
Medium temperature: -25～80℃
D500/7D Explosion-proof Pressure controller
Overview
Introduction
D500/7D Explosion-proof Pressure controller adopts diaphragm messfühler. It can be used for simple gases such as air and the liquid media such as water, hydraulic engine oil, lubricating oil and lightweight fuel engine oil. D500/7D Pressure control mechanism are divided into adjustable and non-adjustable The adjustment or non-adjustable range is 0... 25 MPa. It can be used for simple oils, gaseous advertising and water.
Work principle of D500/7D Explosion-proof Pressure controller
In the course of the manufacturing and production of control mechanism products, each product has its specific working pressure range (range). Within this range, the customer can preset the pressure value which should be switched, which is also referred to as set point of pressure transition. After being attached to the system, when stress of the measured medium is higher than (less than) the collection point, the messfühler generates a step by step signal to cause the microswitch inside the controller to open (close) the training course loop. The control mechanism is usually prepared with an SPDT type microswitch. Every single SPDT Switch can be set to normally closed or normally open status. Introduced set to normally open status, when the microswitch acts, the training course rounds will be closed down. Normally closed status is to detachment the system rounds.
Main tech data of D500/7D Explosion-proof Pressure controller
Type: Explosion-proof type
The particular control system is of ultra-compact design, that allows the transitioning frequency to be more than 100 times/min and the stoß resistance is especially good.
Working viscosity: <1×10-3m2/s
Swap element: micro swap
Ambient temperature: -25～55℃
Medium temperature: -25～80℃
Shell protection level: IP54 (complies with DIN40050, similar to IP54 in GB4208)
Unit installation position: stress interface is vertically downwards (allowed to point 150)
Vibration opposition: Max: 100m/s2
Repeatability error: ≤2. five per cent
Contact capacity: AIR CONDITIONING UNIT 220V 6A (resistive)
Setpoint section Range MPa（kPa） | Switching difference not greater than | Maximum allowable
Allowable pressure
Power *MPa（kPa） | Switch switching times
Times / minute | Pressure sensor Material | Interface
Internal thread | Weight kg | Outline dimension drawing number | Order catalog number | ||||
Lower limit of setpoint range MPa（kPa） | Upper limit of setpoint range MPa（kPa） | Shell | diaphragm | Normal type | Explosion-proof | Normal type | Explosion-proof | |||||
(0…2.5) (0…6) (0…16) (0…25) | (0.3) (0.4) (0.4) (0.4) | (0.4) (0.6) (0.8) (0.9) | (50) (50) (50) (50) | 10 | Galvanized steel | Nitrile rubber | G1/4″ G1/4″ G1/4″ G1/4″ | 1.0 1.0 1.0 1.0 | 01 01 01 01 | 04 04 04 04 | 0812200 0812500 0812700 0812800 | 0852280 0852580 0852780 0852880 |
0.005…0.06 0.005…0.1 0.005…0.16 0.005…0.25 | 0.003 0.003 0.003 0.004 | 0.006 0.009 0.012 0.015 | 1.5 1.5 1.5 1.5 | 40 | brass | G1/4″ G1/4″ G1/4″ G1/4″ | 1.15 1.15 1.15 1.15 | 02 02 02 02 | 05 05 05 05 | 0814100 0814200 0814300 0814400 | 0854180 0854280 0854380 0854480 | |
0.03…0.4 0.03…0.6 0.05…1 | 0.02 0.03 0.03 | 0.04 0.05 0.06 | 4 4 4 | G1/4″ G1/4″ G1/4″ | 0.85 0.85 0.85 | 03 03 03 | 06 06 06 | 0814500 0814600 0814700 | 0854580 0854680 0854780 | |||
0.1…1.6 0.1…2.5 | 0.04 0.04 | 0.12 0.15 | 5 5 | G1/4″ G1/4″ | 0.85 0.85 | 03 03 | 06 06 | 0814800 0814900 | 0854880 0854980 | |||
Setpoint section Range MPa （kPa） | Switching difference not greater than | Maximum allowable
Allowable pressure *MPa （kPa） | Switch switching times
Times / minute | Pressure sensor Material | Interface
Internal thread | Weight kg | Outline dimension drawing number | |||||
Lower limit of setpoint range MPa（kPa） | Upper limit of setpoint range MPa（kPa） | Shell | diaphragm | Normal type | Explosion-proof | Normal type | Explosion-proof | |||||
(0...2.5) (0...6) (0…16) (0…25) | (0.8...2.5) (0.9...4) (1.1...12) (1.1...20) | (1.1…2.5) (1.5…4) (2.3…12) (2.8…20) | (50) (50) (50) (50) | 10 | Galvanized steel | Nitrile rubber | G1/4″ G1/4″ G1/4″ G1/4″ | 1.05 1.05 1.05 1.05 | 01 01 01 01 | 04 04 04 04 | 0802200 0802500 0802700 0802800 | 0842280 0842580 0842780 0842880 |
0.005…0.06 0.005…0.1 0.005…0.16 0.005…0.25 | 0.009...0.05 0.011...0.08 0.013...0.12 0.014...0.2 | 0.016…0.05 0.018…0.08 0.025…0.12 0.025…0.2 | 1.5 1.5 1.5 1.5 | 40 | brass | G1/4″ G1/4″ G1/4″ G1/4″ | 1.20 1.20 1.20 1.20 | 02 02 02 02 | 05 05 05 05 |
