SZGB-4A SZGB-4B Speed sensor

SZGB-4A SZGB-4B Speed sensor

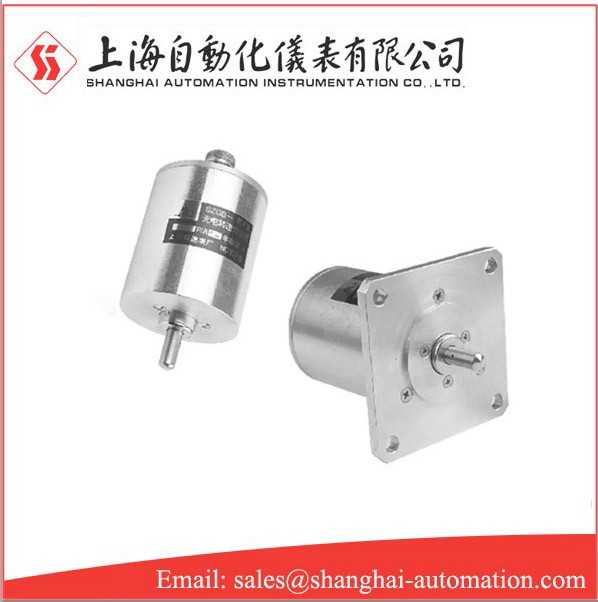

SZGB-4A SZGB-4B Speed sensor is a small enclosed speed sensor with infrared photoelectric device structure. It has the advantages of large power supply range, low power consumption, long life, strong anti-interference ability, and long transmission distance. When in use, it is connected with the measured shaft through a coupling. When the rotating shaft rotates, the angular displacement is converted into an electric pulse signal for use by the secondary instrument. It has the advantages of large power supply range, low power consumption, long service life, strong anti-interference ability, long transmission distance and so on. When in use, it is connected with the measured shaft through the coupling. When the rotating shaft rotates, the angular displacement is converted into an electric pulse signal for the use of secondary instruments.

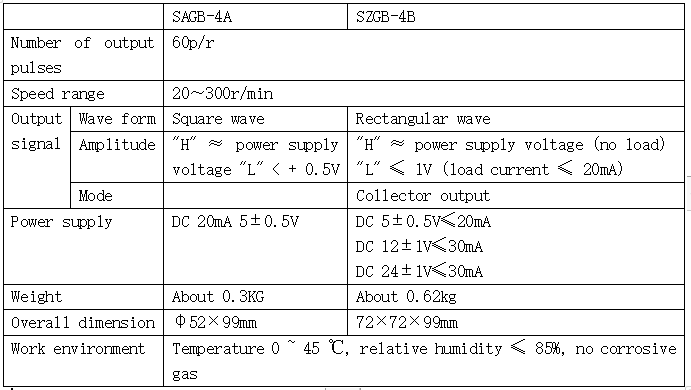

Main tech data of SZGB-4A SZGB-4B Speed sensor

Output pulse number 60p/r

Transmission speed range 20～300r/min

Number Waveform Square Wave Rectangular Wave

Amplitude "H"≈power supply

Voltage "L"<+0.5V "H"≈power supply voltage (no load)

"L"≤1V (load current≤20mA)

Method Collector output

Power supply DC 20mA 5±0.5V DC 5±0.5V≤20mA

DC 12±1V≤30mA

DC 24±1V≤30mA

Weight about 0.3kg about 0.62kg

Dimensions φ52×99mm 72×72×99mm

Working environment Temperature 0～45℃ Relative humidity ≤85%, no corrosive gas
