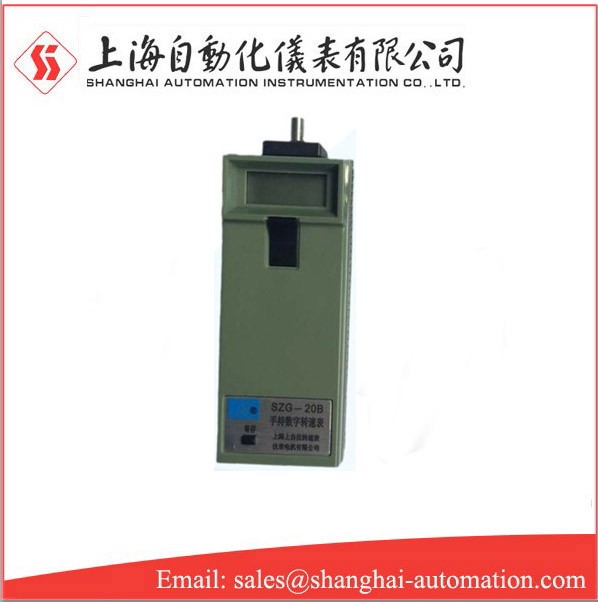

SZG-20B SZG-441C Tachometer

SZG-20B SZG-441C Tachometer

Overview of SZG-20B SZG-441C Tachometer

SZG-20B SZG-441C Tachometer is a new generation of intelligent tachometer using a single chip microprocessor as the main chip. The product has a tachometer with wide measuring range, high accuracy and convenient use, which can measure the rotational speed and linear speed.

Main technical performance of SZG-20B SZG-441C Tachometer

Measuring range: 10 ～ 25000 r/min

Basic error: ± 0.05% xNb

Nb - standard speed value r/min

Note: When the basic error is less than 1 word of the last digit, the error is calculated by the last digit ± 1.

Display: 5-digit LCD digital display

Sampling time: 1s

Power supply: three No. 5 batteries

Operating temperature: 5~40 ℃

Starting torque: no more than 4.9 × 10-4 N.m

Overall dimension: 166 × forty-two point five × fifty-eight

Weight: about 160g

Operating instructions of SZG-20B SZG-441C Tachometer

1. The key at the top is the measuring switch. Press the measuring switch to measure. At this time, the tachometer is in the measuring speed state, and the unit is r/min.

2. The next key is the deposit key. Press this key to call up the post measurement of deposit.

3. There are various speed measuring heads in the accessories, which are applicable to various speed measuring conditions. The conical speed measuring head is used for speed measurement, and the unit of displayed value is r/min; The disc speed measuring head is used for linear speed measurement, and the unit of displayed value is 10cm/min. The long rod is used to lengthen the speed measuring head and extend the detection depth of the speed measuring head.
