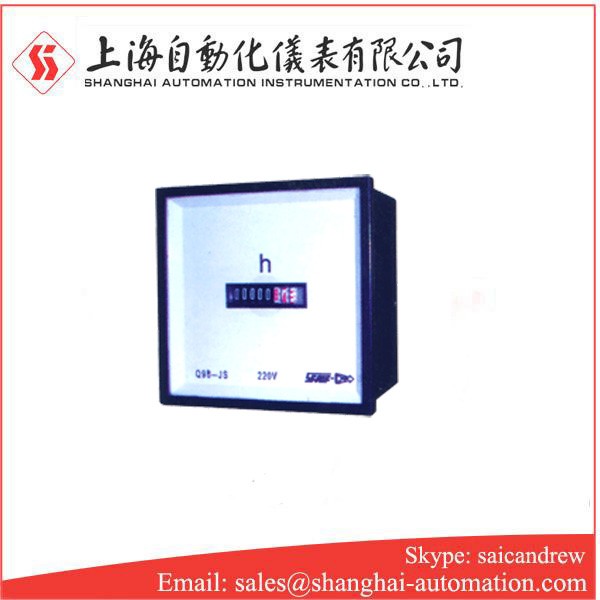

Q96-JS Q72-JS Q48-JS Timer

                                                       Q96-JS Q72-JS Q48-JS Timer

Overview

 Q96-JS Q72-JS Q48-JS Timer is a device that uses specific principles to measure time. Timers can be used to help you solve these problems. The operation interface is simple and easy to use, and provides basic timing control functions, including: start timing, stop timing, continue timing, the operation interface is simple and easy to use, reset and adjust timing. Timers can be divided into two main types. Timers that count up from zero to measure elapsed time are often referred to as stopwatches, while devices that count down from a specified time interval are often referred to as timers

Working principle of Q96-JS Q72-JS Q48-JS Timer

When the coil of the electromagnetic dot timer is energized, the coil generates a magnetic field, the vibrating plate in the coil is magnetized, and the vibrating plate moves upward or downward under the action of the magnetic field of the permanent magnet. Since the direction of the alternating current changes twice per cycle, the magnetic pole of the vibrating plate after being magnetized will change, and the direction of the force exerted by the permanent magnet on it will also change, When the vibrating plate is subjected to a downward force, it is dotted once, and when the vibrating plate is subjected to an upward force, it is not dotted. Therefore, it is dotted once in a cycle of alternating current, that is, the time interval between each two points is equal to the cycle of alternating current.

Main tech data of Q96-JS Q72-JS Q48-JS Timer

Withstand voltage: 2KV 50Hz for one minute

Ambient temperature: - 25 ℃ to + 55 ℃

Enclosure protection: IP44.

IP56: applicable to Q72 and Q96 instruments with sealing cover.

Vibration resistance: 2-100hz acceleration ≤ 0.7G

Small timing: 0.01h

Large timing: 9.9999.99h

Working frequency: 50Hz; 60Hz

Working voltage: 110VAC or 220VAC ± 10%

Note: Any special design or question of Q96-JS Q72-JS Q48-JS Timer, kindly contact the manufacturer for more details.
