Temperature transmitter

Temperature transmitter

Overview

SBWZ(R) is a high-precision and high-stability HART temperature transmitter that integrates most standard HART protocol commands and some custom commands. Suitable for up to ten types of thermocouples and RTD signal transduction. This product uses independent ADI company's 24-bit Σ - △ sample chips, ensure the high precision of measurement; Perfect design of anti-surge and anti-reverse connection can avoid wrong installation and wrong operation in engineering application. Enhanced software security design, including independent watchdog, low voltage monitoring reset, multi-task scheduling optimization and other functions. All imported components ensure long service life and stability. In order to facilitate the long-term stocking of large customers, buttons and HART communication line equipment can be used for configuration setting.

Connection mode

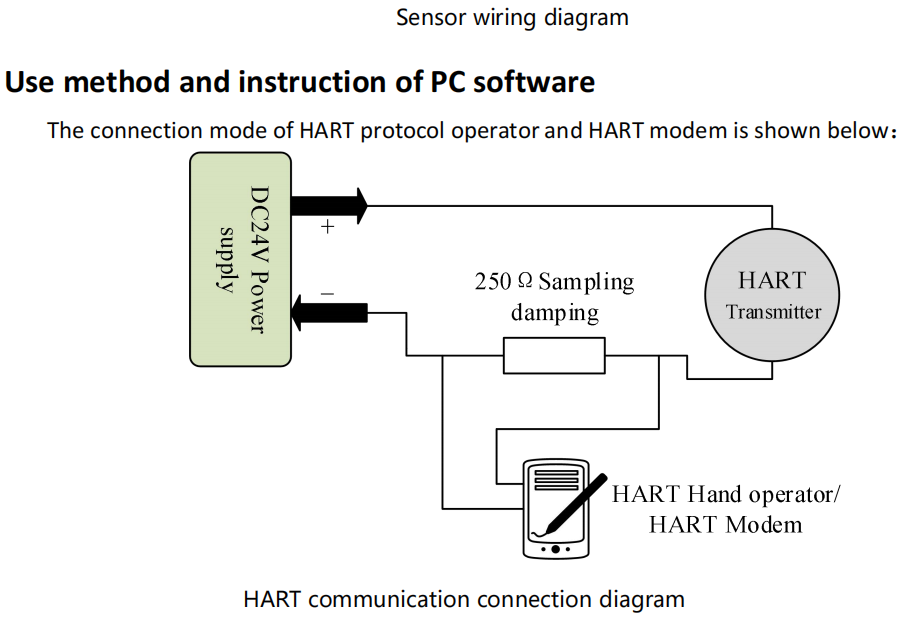

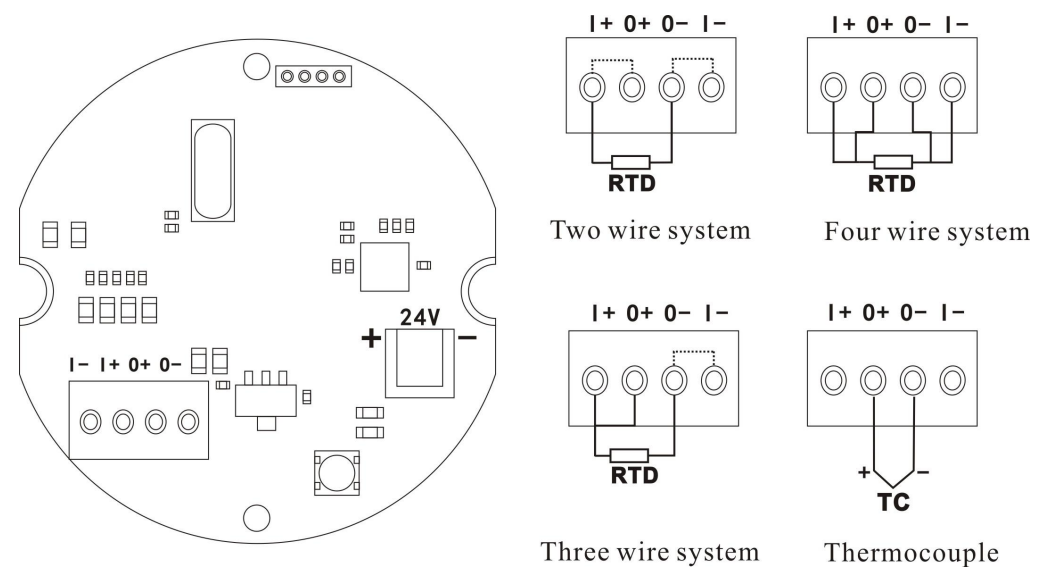

SBWZ(R) is installed in the standard 3051 housing, which is suitable for all types of thermal resistance and thermocouple. Please see the following wiring method：

Model table
