Model: Y-40Z Y-60Z
Movement: copper alloy
Working vibration: V, H3
Temperature: -40～70℃

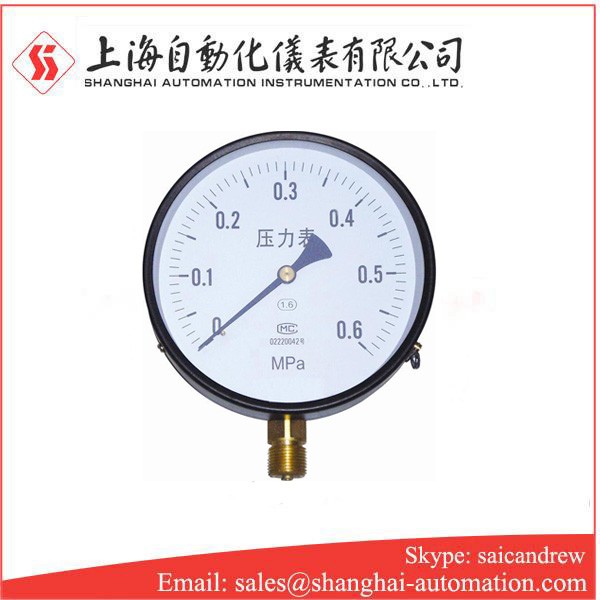

Y-40Z Y-60Z Pressure gauge
Overview
Y-40Z Y-60Z Pressure gauge refers in order to the elastic element as the delicate component, the dimension and indicator much better than the environment pressure instrument, will be very popular, it really is almost throughout almost all commercial processes plus scientific research areas. It can become seen everywhere upon heat pipe system, oil and gasoline transmission, water plus gas supply program, vehicle maintenance industrial facilities and shops. Specifically in the procedure of commercial procedure control and specialized measurement, the mechanised pressure gauge will be more and a lot more popular due to the elastic sensitive component with good mechanised strength and hassle-free production.
Working priciple of Y-40Z Y-60Z Pressure gauge
The pressure gauge transmits the stress deformation to the particular pointer with the flexible deformation from the delicate parts (Bourdon pipe, bellows, bellows) within the watch, after which causes the tip to rotate to show the pressure.
Primary structure of Y-40Z Y-60Z Pressure gauge
Overflow opening: in the event of emergency associated with bourdon tube filled, The interior stress will be launched to the outdoors with the overflow opening, avoiding the cup panel from breaking. Note: To be able to sustain the normal overall performance of the flood hole, a area of a minimum of 10mm should be put aside behind the desk. The overflow opening cannot be altered or blocked. Tips: Pointers other compared to standard Pointers are usually optional.
Glass protected panel: in inclusion to standard cup, other special cup, such as strengthened glass, non reflecting glass is furthermore optional. Performance category: common type (standard), steam for typical type (M), warmth resistant type (H), vibration resistant kind (V), steam with regard to vibration resistant kind (MV) heat proof vibration resistant kind (HV).
Treatment: simply no oil/no water therapy to get rid of residual drinking water or oil within the liquid getting part during production.External specification: covering color must be specifically indicated along with regular color.Throttle control device (optional): To lessen pulsing pressure, the accelerator valve is set up in the stress inlet.
Features associated with Y-40Z Y-60Z Pressure gauge
solid corrosion resistance
Metal steel pressure evaluate case and line are made associated with genuine stainless metal material, therefore it may be used in corrosive atmosphere when measuring rust liquids or gas, and will not have to get impacted by the particular normal reading associated with the value will certainly not damage the particular dial. In inclusion to the stainless-steel dial glass will be explosion-proof and corrosion resistant tempered glass, therefore the overall mixture can make it in various rust environment may be used openly.
strength and firmness
Stainless-steel pressure evaluate has better power and hardness, within use process may withstand the impact of various exterior load and not really be destroyed, the particular more business customers are willing in order to choose stainless metal pressure gauge, therefore shell use materials made of stainless-steel pressure gauge compared to aluminum or some other material strength plus hardness of the particular iron, Are capable to promise a person that in the particular use process will certainly not be impacted by external pressure and damage call.
high earthquake level of resistance
The stainless metal pressure gauge will be made of metal steel along with the inner original, as well as the entire table is packed with silicone essential oil, which make the particular pressure gauge perform a good surprise absorption and earthquake resistance. Consequently, within some special events, like the mining internet site, you should select a very good shockproof stainless stainlesss steel pressure gauge, inside order to attain good precision stress test.
Main technology data of Y-40Z Y-60Z Pressure gauge
a) The particular ambient temperature is usually: 20℃±5℃
b) The particular meter with the particular normal working place
c) The fill changes evenly
Take note: You should definitely specified, the particular normal working place refers to up and down installation.
Temperature effect: no more compared to 0. 4%/10°C (use temperature deviates coming from 20±5°C)
Executive common: GB/T1226-2010
Operating temp: -40℃~70℃
Seismic school: V. H. three or more
Model | D(Φ) | d | d1(Φ) | L | d0(Φ) | B | H | d2(Φ) | H1 | H2 |
Y-40 | 40 | M10×1 | 4 | 10 | 58 | 23 | 8.5 | |||
Y-40Z | 40 | M10×1 | 4 | 10 | 44 | 23 | 0 | |||
Y-60 | 60 | M14×1.5 | 5 | 14 | 56 | 28 | 10.5 | |||
Y-60Z | 60 | M14×1.5 | 5 | 14 | 56 | 28 | 0 | |||
Y-60ZT | 60 | M14×1.5 | 5 | 14 | 72 | 56 | 28 | 5 | 24 | 0 |
Y-100 | 100 | M20×1.5 | 6 | 20 | 90 | 42 | 16 | |||
Y-100ZT | 100 | M20×1.5 | 6 | 20 | 118 | 83 | 43 | 5.5 | 25 | 24 |
Y-150 | 150 | M20×1.5 | 6 | 20 | 116 | 44 | 16 | |||
Y-150ZT | 150 | M20×1.5 | 6 | 20 | 165 | 85 | 45 | 5.5 | 27 | 35 |
Y-200 | 200 | M20×1.5 | 6 | 20 | 140 | 46 | 16 | |||
Y-250 | 250 | M20×1.5 | 6 | 20 | 170 | 60 |
Model | Y-40
Y-40Z | Y-60 Y-60Z Y-60ZT | Y-100
Y-100ZT | Y-150
Y-150ZT | Y-200
Y-250 |
Nominal Diameter mm | Φ40 | Φ60 | Φ100 | Φ150 | Φ200、Φ250 |
Joint Thread | M10×1 | M14×1.5 | M20×1.5 | ||
Accuracy | 2.5 | 1.5 | |||
Measure range MPa | 0～0.1；0.16；0.25；0.4；0.6；1；1.6；2.5；4；6 | 0～0.6；1； 1.6；2.5；4；6 | |||
0~10; 16; 25 | 0~10; 16; 25; 40;<span style=&quo
