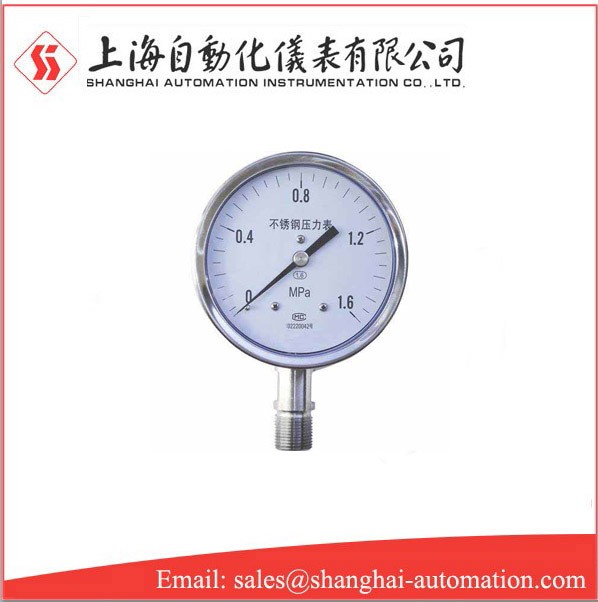

Y-103BF Y-150BF Y-153BF SS pressure gauge

Y-103BF Y-150BF Y-153BF SS pressure gauge

Application of Y-103BF Y-150BF Y-153BF SS pressure gauge

Stainless steel pressure gauges are widely used in petroleum, chemical, chemical fiber, metallurgy, power station, food and other industrial sectors to measure the pressure of various fluid media in the process flow with high requirements for corrosion resistance and high temperature resistance.

Overview of Y-103BF Y-150BF Y-153BF SS pressure gauge

The meter is made of direct contact connector and pressure sensing element materials, including icr18Ni9T, Ocr18Ni12Mo2Ti and sus316. Its structure is fully sealed. The stainless steel pressure gauge has strong resistance to the corrosion of the measured medium and the environment. Stainless steel pressure gauge is applicable to medium with strong corrosivity suitable for stainless steel component detection and harsh external corrosion environment. Stainless steel pressure gauge is widely used in petroleum, chemical, metallurgy and other industries.

Structure principle of Y-103BF Y-150BF Y-153BF SS pressure gauge

The stainless steel pressure gauge is composed of a pressure guiding system (including joints, spring pipes, flow limiting screws, etc.), a gear transmission mechanism, a number indicating device (pointer and dial) and a housing (including a case, a cover, a glass, etc.).

The pressure gauge displays the pressure through the elastic deformation of the stainless steel sensing elements (Bourdon tube, bellows, bellows) in the gauge, and then the elastic deformation is transmitted to the pointer by the conversion mechanism of the movement in the gauge, causing the pointer to rotate.

Main tech data of Y-103BF Y-150BF Y-153BF SS pressure gauge

Product name: SS pressure gauge

Model: Y-103BF Y-150BF Y-153BF

Material: 304SS 316SS

Dial diameter： 100mm, 150mm

Connection: Thread

Structure: axial, radial

Accuracy class: 1.6, 2.5

Ambient temperature: -25~ 70°C

Protection grade IP65

Type: Bourdon tube pressure gauge
