Overview of Y-60BFZ Y-63BFZ Y-100BFZ liquid filled pressure gauge

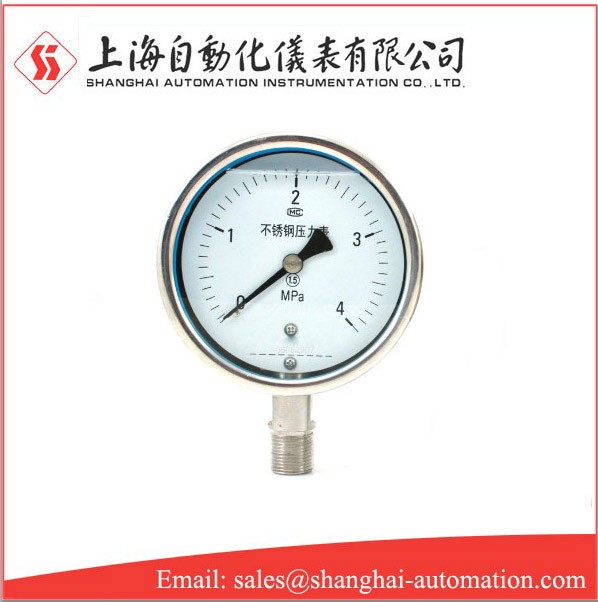

The shell and internal components of the stainless steel shock proof pressure gauge are made of stainless steel, and the gauge body is filled with silicone oil, so that the pointer of the pressure gauge can play the role of shock absorption and shock resistance.

The stainless steel shock proof pressure gauge has both the shock resistance of the shock proof pressure gauge and the corrosion resistance of the stainless steel pressure gauge. The stainless steel shock proof pressure gauge is suitable for occasions where the vibration of the industrial and mining site is large and the measured medium is corrosive.

Measuring range of Y-60BFZ Y-63BFZ Y-100BFZ liquid filled pressure gauge

In order to ensure that the elastic element can work reliably within the safe range of elastic deformation, when selecting the range of pressure gauge, sufficient margin must be reserved according to the size of the measured pressure and the speed of pressure change. Therefore, the upper limit value of the pressure gauge should be higher than the maximum possible pressure value in process production. When measuring the stable pressure, the maximum working pressure shall not exceed 2/3 of the upper limit of measurement; When measuring the pulsating pressure, the maximum working pressure shall not exceed 1/2 of the upper limit of measurement; When measuring high pressure, the maximum working pressure shall not exceed 3/5 of the upper limit of measurement. Generally, the minimum value of the measured pressure shall not be less than 1/3 of the upper limit value of the instrument. Ensure the accuracy and sensitivity of the instrument measurement results.

After the upper and lower limits of the instrument are calculated according to the maximum and minimum values of the measured parameters, this value cannot be directly used as the measuring range of the instrument. When we select the upper limit value of the gauge, we should select it from the national standard series. The standard series of pressure gauge measurement range in China are: - 0.1-0.06, 0.15; 0-1,1.6,2.5,4,6,10X10 "MPa (where n is a natural integer and can be positive or negative).

Installation matters

1. The ambient temperature of the instrument is - 40~70 ℃, and the relative humidity is not more than 80%. If the instrument deviates from the normal operating temperature by 20 5 ℃, the additional temperature error must be included.

2. The instrument must be installed vertically and try to keep the same level with the measuring point. If the difference is too high, it is included in the additional error caused by the liquid column, which may not be considered when measuring the gas. When installing, block the explosion-proof port at the back of the meter case to avoid affecting the explosion-proof performance.

3. The measuring range of the instrument in normal use shall not exceed 3/4 of the upper measuring limit under static pressure and 2/3 of the upper measuring limit under fluctuation. Under the above two pressure conditions, the minimum value measured by large pressure gauge shall not be less than 1/3 of the lower limit. When measuring vacuum, all vacuum parts shall be used.

4. If the pointer of the instrument fails or the internal parts are loose or cannot work normally during use, it shall be repaired or the manufacturer shall be contacted for maintenance.

5. The instrument shall avoid vibration and collision to avoid damage.

6. Please indicate the instrument model and name when ordering; Measuring range of the instrument; The accuracy grade of the instrument deviates from the positive packaging requirements and others.

7. The stainless steel shock proof pressure gauge is not suitable for the environment with strong oxidants such as oxygen, chlorine, nitric acid and hydrogen peroxide.
