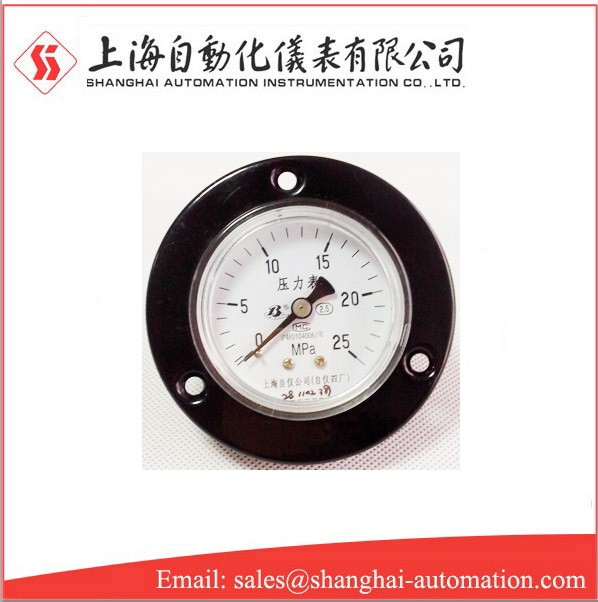

Y-60ZT Y-100ZT Y-150ZT Pressure gauge

Model: Y-60ZT Y-100ZT Y-150ZT Pressure gauge
Normal diameter: 60mm 100mm 150mm
Connection thread: M14x1.5 M20x1.5
Accuracy: 2.5 1.5

Overview of Y-60ZT Y-100ZT Y-150ZT Pressure gauge

Product Description: general pressure gauge is suitable for measuring the pressure of liquid, vapor, gas and other media without explosion danger, no crystallization, no solidification and no corrosion to steel and copper alloy。

Main tech data of Y-60ZT Y-100ZT Y-150ZT Pressure gauge

Model	Y-40 Y-40Z	Y-60	Y-100	Y-150	Y-200
		Y-60Z
		Y-60ZT	Y-100ZT	Y-150ZT	Y-250
Normal diameter mm	Φ40	Φ60	Φ100	Φ150	Φ200 Φ250
Connection thread	M10x1	M14x1.5	M20x1.5
Accuracy	2.5		1.5
Measuring range (MPa)	0~0.1; 0.16; 0.25; 0.4; 0.6; 1; 1.6; 2.5; 4; 6				0~0.6; 1; 1.6; 2.5; 4; 6
	0~10;16;25		0~ 10;16;25;40;60
	-0.1~0	-0.1~0; -0.1~0.6; 0.15; 0.3; 0.5; 0.9; 1.5; 2.4

Operating environment conditions: - 40 ° C ~ 70 ° C, relative humidity not more than 85%

Temperature effect: no more than 0.49% / 10 * C (the humidity deviation is 20 + 5 ° C)

Material of main parts of Y-60ZT Y-100ZT Y-150ZT Pressure gauge

Part name

Connection

Spring tube

Inner works

Shell

Material name

Copper alloy HPb59-1

Phosphor copper QSn4-0.3

Copper alloy

Steel plate 0.8F

Structural principle of Y-60ZT Y-100ZT Y-150ZT Pressure gauge

The measuring system of the instrument is composed of joint, spring and transmission mechanism. The meter reading is indicated by the pointer.

Model tabel of Y-60ZT Y-100ZT Y-150ZT Pressure gauge

Model	D(Φ)	d	D1(Φ)	L	D0(Φ)	B	H	D2(Φ)	H1	H2
Y-150	150	M20*1.5	6	20		116	44			16
Y-150ZT	150	M20*1.5	6	20		85	45	5.5	27	35
Y-200	200	M20*1.5	6	20		140	46			16
Y-250	250	M20*1.5	6	20		170	60
Y-40	40	M10*1	4	10		58	23			8.5
Y-40Z	40	M10*1	4	10		44	23			0
Y-60	60	M14*1.5	5	14		56	28			10.5
Y-60Z	60	M14*1.5	5	14		56	28			0
Y-60ZT	60	M14*1.5	5	14	72	56	28	5	24	0
Y-100	60	M20*1.5	6	20		90	42			16
Y-100ZT	100	M20*1.5	6	20	118	83	43	5.5	25	24
