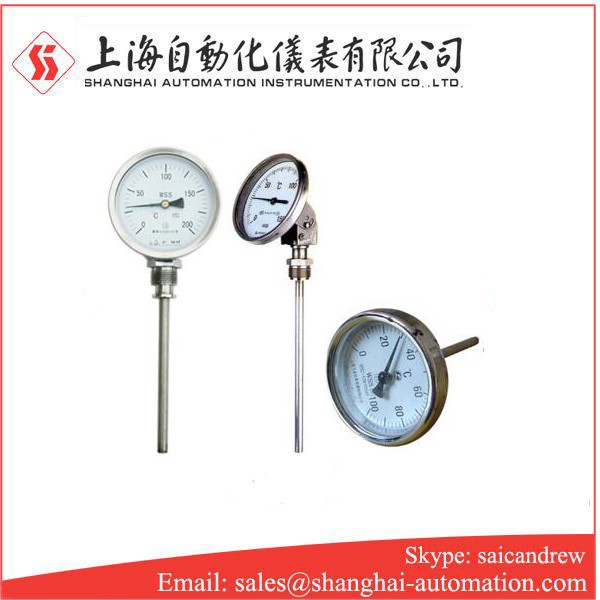

WSS-481 WSS-581 WSS-482 WSS-582 Bimetallic temperature indicator

WSS-481 WSS-581 WSS-482 WSS-582 Bimetallic temperature indicator

Overview

WSS-481 WSS-581 WSS-482 WSS-582 Bimetallic temperature indicator is a temperature sensor for on-site local display and remote transmission of electrical signals. It can not only indicate temperature on site, but also transmit thermocouple (resistance) and two-wire temperature transmitter signals. As a new generation of thermometer, it can be widely used in metallurgical, petrochemical, electric power, textile, food, national defense and other industrial sectors.

Working principle

WSS-481 WSS-581 WSS-482 WSS-582 Bimetallic temperature indicator is a single needle indicating thermometer that uses a bimetallic sheet wound into a spiral tube to be fixed at one end, and the other free end is connected with the pointer, which rotates with the temperature change and drives the pointer to rotate to indicate the temperature.

Features of WSS-481 WSS-581 WSS-482 WSS-582 Bimetallic temperature indicator

Thermocouple (resistance), bimetal thermometer or temperature transmitter are integrated.

Suitable for long-term work in harsh environments.

The remote electrical signal has high accuracy and stable operation. It can also be directly output in the form of two-wire system to improve the anti-interference ability in the process of long-distance transmission of signals.

High performance price ratio

Main tech data of WSS-481 WSS-581 WSS-482 WSS-582 Bimetallic temperature indicator

Dial diameter： 100mm, 150mm

Type: Universal

Installation and fixation mode: Active external thread   Active internal thread
