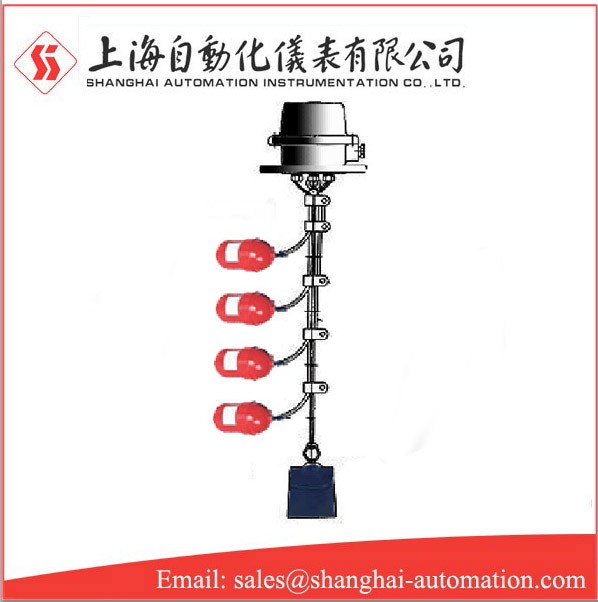

UQK-611 UQK-612 UQK-613 UQK-614 Float level controller

UQK-611 UQK-612 UQK-613 UQK-614 Float level controller

Overview

UQK-611 UQK-612 UQK-613 UQK-614 Float level controller is a liquid level switch that uses the micro switch inside the float to send signals. Since there is no movable machinery outside, it is particularly suitable for liquids containing solid or semi-solid floating objects; For example, the automatic alarm and control of the liquid level of sewage treatment water, factory wastewater pool and other liquid tanks, when the liquid reaches a certain location, the controller will quickly turn over to enable the microswitch to send a signal. The action range can be set freely on site

Main tech data of UQK-611 UQK-612 UQK-613 UQK-614 Float level controller

◇ Boundary dimension: floating ball ￠ 88X172, maximum outer diameter of junction box ￠ 205, height 142, mounting flange dimension: HG20592-97 DN100 PN0.6MPA, central circle diameter of bolt hole ￠ 170, 4 holes - ￠ 18

◇ Flange outer diameter: ￠ 205

◇ Output signal: microswitch single pole double throw contact output 15A 1/2NPT 250VAC; 0.6A 125VDC; 0.3A 250VDC

◇ Contact life: 5X104

◇ Medium temperature: - 10 ℃～ ＋ 55 ℃, IE level controller: - 10 ℃～ ＋ 80 ℃

◇ Adjustment range: 0.3m~4m (6m, 13m, 20m)

◇ Material of main components: floating ball ABS plastic; Heavy hammer: carbon steel or cast iron is coated with protective paint; Suspension cable: nylon rope conductor: three core rubber sheathed flexible cable (oil resistant polybutadiene rubber)

◇ Seismic requirements: can withstand the seismic test response spectrum of Qinshan Phase II Nuclear Power Plant.

◇ Radioactivity: 2X104GY
