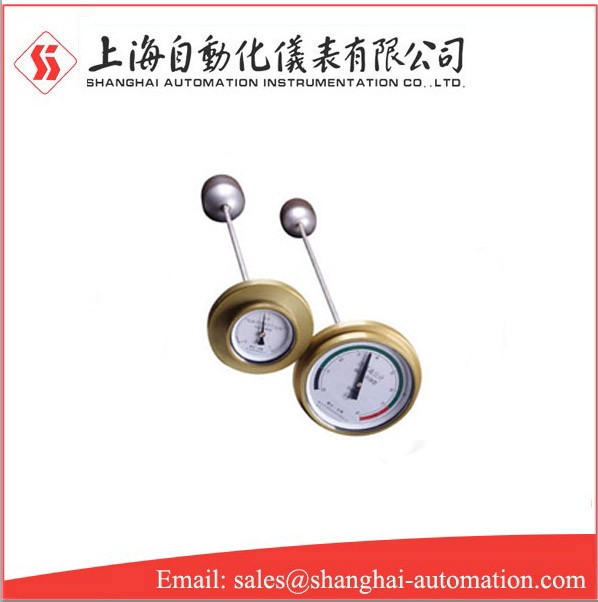

UQZ Float level gauge

Accuracy: UQZ-1 type: Level 2
UQZ-2 type: grade 2.5
Ambient temperature: - 40 ～ + 55 ℃ type 1, - 25 ～ + 55 ℃ type 2
Medium temperature: ≤ 120 ℃
Medium type: UQZ-1 type: top mounted, flange connected

UQZ-2 type: side mounted, flange connected.

Overview

UQZ series Float level gauge is a pointer type instrument used to directly indicate the liquid level in various open or pressure vessels. Compared with the glass level gauge commonly used in industrial equipment, this instrument is not afraid of cracking, and the indication value is more clear. It is especially suitable for direct indication of oily liquid medium or toxic and harmful medium with viscous effect on the glass tube wall.

The instrument is of pure mechanical structure, so it is intrinsically safe when working in flammable and explosive places.

UQZ series floating ball liquid level gauge is a top mounted instrument, which can be used for liquid level indication of underground tanks or oil depots.

UQZ series instruments are not suitable for medium with strong corrosion effect on ordinary stainless steel materials.

UQZ series instruments are not suitable for medium with strong corrosive effect on brass, aluminum, stainless steel and other materials.

Accuracy: UQZ-1 type: Level 2

UQZ-2 type: grade 2.5

Ambient temperature: - 40 ～ + 55 ℃ type 1, - 25 ～ + 55 ℃ type 2

Medium temperature: ≤ 120 ℃

Medium type: UQZ-1 type: top mounted, flange connected

UQZ-2 type: side mounted, flange connected.

Model	Medium density (g / cm3)	Range	Measurement method	Media pressure Mpa	Floating ball
UQZ-1-0001	≥0.7	1	Fullness	≤1.6	Ø126
UQZ-1-0002		1.5
UQZ-1-0003		2
UQZ-1-0004		2.5
UQZ-1-0011	≥0.4	1			Ø200
UQZ-1-0012		1.5
UQZ-1-0013		2
UQZ-1-0014		2.5
UQZ-1-0101	≥0.7	1	Emptiness		Ø126
UQZ-1-0102		1.5
UQZ-1-0103		2
UQZ-1-0104		2.5
UQZ-1-0111	≥0.4	1			Ø200
UQZ-1-0112		1.5
UQZ-1-0113		2
UQZ-1-0114		2.5
UQZ-2-0001	≥0.45	1	Fullness	≤1.8	Ø90
UQZ-2-0002		1.5
UQZ-2-0003		2
UQZ-2-0011	≥0.7	1		≤2.5	Ø90
UQZ-2-0012		1.5
UQZ-2-0013		2
UQZ-2-0021		1
UQZ-2-0022		1.5
UQZ-2-0023		2

Model tabel of UQZ Float level gauge

Product name	Model
Float level gauge	UQZ-1-0001
Float level gauge	UQZ-1-0002
Float level gauge	UQZ-1-0003
Float level gauge	UQZ-1-0004
Float level gauge	UQZ-1-0011
Float level gauge	UQZ-1-0012
Float level gauge	UQZ-1-0013
Float level gauge	UQZ-1-0014
Float level gauge	UQZ-1-0101
Float level gauge	UQZ-1-0102
Float level gauge	UQZ-1-0103
Float level gauge	UQZ-1-0104
Float level gauge	UQZ-1-0111
Float level gauge	UQZ-1-0112
Float level gauge	UQZ-1-0113
Float level gauge	UQZ-1-0114
Float level gauge	UQZ-2-0001
Float level gauge	UQZ-2-0002
Float level gauge	UQZ-2-0003
Float level gauge	UQZ-2-0004
Float level gauge	UQZ-2-0005
Float level gauge	UQZ-2-0011
Float level gauge	UQZ-2-0012
Float level gauge	UQZ-2-0013
Float level gauge	UQZ-2-0014
Float level gauge	UQZ-2-0015
Float level gauge	UQZ-2-0021
Float level gauge	UQZ-2-0022
Float level gauge	UQZ-2-0023
Float level gauge	UQZ-2-0024
Float level gauge	UQZ-2-0025
Float level gauge	UQZ-1-000
Float level gauge	UQZ-1-001
Float level gauge	UQZ-1-010
Float level gauge	UQZ-1-011
Float level gauge	UQZ-2-000
Float level gauge	UQZ-2-001
Float level gauge	UQZ-2-002
