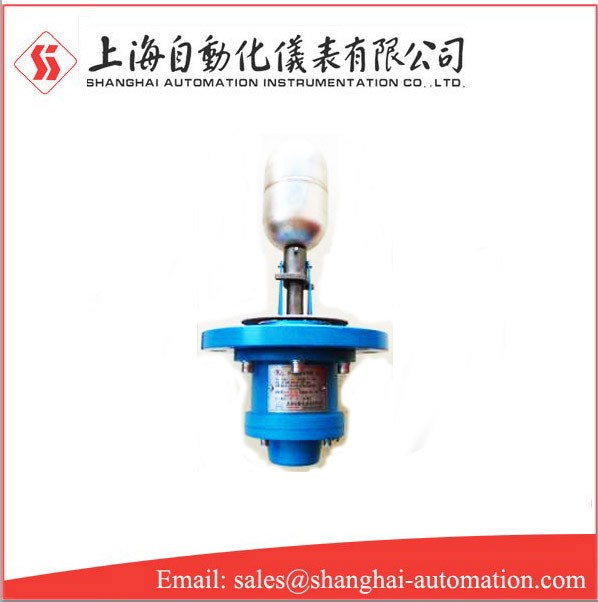

UQK-01-B UQK-02-B UQK-03-B Explosion proof float level controller

UQK-01-B UQK-02-B UQK-03-B Explosion proof float level controller

Overview

UQK-01-B UQK-02-B UQK-03-B Explosion proof float level controller is applicable to control the liquid level in various containers. When the liquid level reaches the upper and lower switching values, the controller contacts send on-off switch signals.

The explosion-proof type can be used for the liquid level controller of the pressure vessel composed of class 1.2 flammable and explosive media and a, B and C. Explosion proof DIICT4-T6.

UQK-01-B UQK-02-B UQK-03-B Explosion proof float level controller is not suitable for medium with strong corrosion effect on brass, stainless steel, aluminum and other materials and containing magnetic conductive impurities.

Working principle

UQK-01-B UQK-02-B UQK-03-B Explosion proof float level controller shall be treated by the intermediate relay before the high-power equipment such as pump valve is expelled. Generally, the output signal of one uqk can be used to control the pump or valve to control the liquid level in the container within the switching difference range of the instrument.

Main tech data of UQK-01-B UQK-02-B UQK-03-B Explosion proof float level controller

Explosion proof grade: dIICT4-T6

Media pressure: 2.5~4Mpa

Media temperature: 150

Installation form: Level/Vertical

Model table
