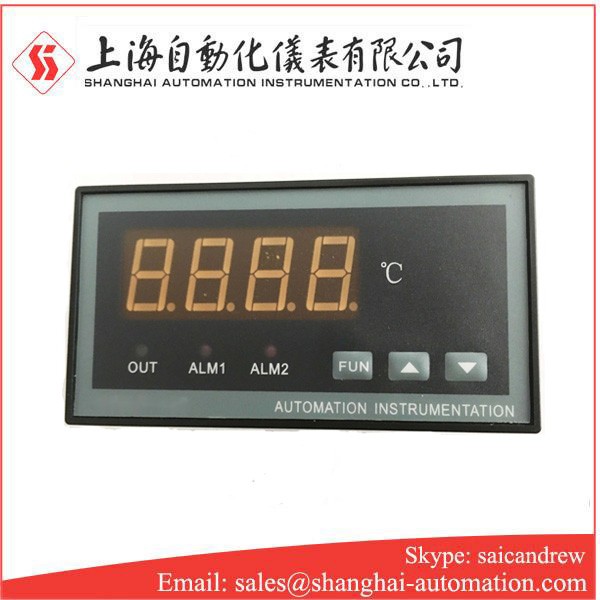

XTMF-100 XTMF-100-D XTMF-100-DB Smart display controller

XTMF-100 XTMF-100-D XTMF-100-DB Smart display controller

Overview

XTMF-100 XTMF-100-D XTMF-100-DB Smart display controller adopts complete output and regulation rules for selection, has power-off protection function, accuracy grade ± 0.3% FS ± 1dig, and has full input function, so that the instrument can play a multi-purpose function, the range can be freely moved when linear input, and the display is clear, direct, reliable and practical instrument installation structure.

The instrument has full input function, and the input signal type can be directly selected on the panel, including common thermocouple, thermal resistance, radiation temperature sensor, remote pressure gauge resistance input and standard signal input. The latter two signal inputs have range conversion function.

The instrument has two relay alarm outputs, each of which can be arbitrarily set as the upper limit alarm or the lower limit alarm. The alarm value is set in the full range, and the alarm insensitive area can be set. Therefore, it can be used as the alarm output and also as the bit control output.

XTMF-100 XTMF-100-D XTMF-100-DB Smart display controller also has a third relay output, which can be used as alarm or bit control output.

The instrument can be configured with process variable transmission current output, 0 ~ 10ma.dc or 4 ~ 20ma.dc can be selected arbitrarily.

Features of XTMF-100 XTMF-100-D XTMF-100-DB Smart display controller

SMT surface mount technology

Switch power supply is adopted to make the instrument more light and compact.

It has full input function, which not only makes the instrument have multiple functions, but also increases the plasticity of the instrument.

With power down protection function.

The accuracy is 5% FS soil 1ding

The output of the two sets of circuit breakers is flexible and can be used for alarm and adjustment.

The range can be shifted at will when linear input.

With high performance price ratio.

The display method is clear and intuitive.

Reliable and practical instrument installation structure.

The resolution is 14 bit

With sensor error correction function.
