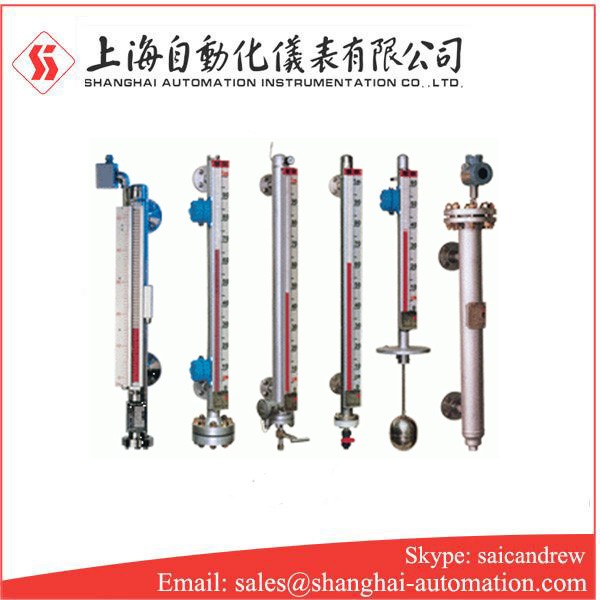

Magnetic level indicator

Magnetic level indicator

Overview

Typically the magnetic level warning is a reliable safety detection tool. As a result of isolation and sealing structure with magnetic coupling. That is especially well suited for flammable, explosive and corrosive toxic the liquid level detection. As a result, the liquid levels detection method in the original sophisticated environment becomes simple, reliable and safe.

The magnetic levels indicator has the direct reading attribute of local exhibit. Multiple sets of the liquid level gauge blends are not required. There is a single body for full-scale measurement. Typically the equipment has few openings, clear exhibit and eye-catching signals. Intuitive reading and other advantages. As soon as the liquid levels gauge is immediately equipped with a display instrument, the intermediate transmission of the signal diagnosis of the system can be disregarded, to improve it is transmission accuracy

Arrangement of Magnetic level indicator

The permanent magnetic level indicator is mainly built from permanent magnetic ball, sensor and transmitter. If the permanent magnetic levitation ball floats up and down over the conduit with the change of liquid level, the magnetic steel in the floating soccer ball attracts the dried up reed tube at the related position in the messfühler to change the complete resistance (or voltage) of the messfühler, and then the transmitter converts the changed resistance (or voltage) signal into 4-20mA current sign for output XMT series digital exhibit controller (or DSB light column digital display instrument) produced by our company can be picked to measure the liquid level slightly, and the uppr and lower reduce alarms can be set on the display instrument to comprehend the position control of the the liquid level, as well as the liquid level frequent value regulation system can be built from other regulators to comprehend the PID continuous regulations of the the liquid level.

Working process of Magnetic level indicator

The permanent magnetic level indicator switches into the principle of connector to create the liquid in the container into the key body of the the liquid level gauge in addition height. The flying ball assembly flying in the key if your based on the principle of buoyancy and permanent magnetic coupling. The exhibit of the the liquid level position of the turnover steering column which can mirror the magnetic happening is attached beyond the key body. While using change of the liquid level in the key body, the peak of the floating soccer ball assembly also changes accordingly. Thus, the turnover column outdoor the key if your turned 180 diplomas. When the the liquid level rises, the turnover column changes from white to red. When the liquid level declines, the turnover steering column changes from red to white. Typically the red and white boundary of the display is the actual height of the medium the liquid level in the container.

Features of Magnetic level indicator

1. It can be pertinent to the the liquid level measurement of liquid medium in the container. Throughout addition to on-site display, it can even be equipped with distant transmitter, liquid levels controller and other functions.

2. Typically the display is user-friendly and attention-grabbing, and the display route can be modified in line with the user's requirements.

3. The way of measuring range is large and is not limited by the height of the container.

4. Typically the display assembly is completely isolated from the measured medium, so it has good sealing, reliable very safe.

5. Simple structure, convenient installation and maintenance.

6. Corrosion amount of resistance and explosion-proof.

Key tech data of Magnetic level indicator

Measurement range: 600 ~ 15000mm (side mounted: 300 ~ 15000mm; top (bottom) mounted: 300 ~ 6000mm)

Accuracy: 10mm

Working pressure: ≤ 2. 5MPa (normal)

≤ 9. 6mpa (high pressure)

≤ 0. 6MPa (anti-corrosion type)

Medium thickness: ≥ 0. 45g/cm3

Medium density big difference: ≥ 0. 12-15 g / cm3 (measurement interface)

Channel temperature: - 20 ～＋ 250 ℃ (up to 400.00 ℃ for special requirements)

Medium viscosity: ≤ 0. 4pa · S. for the medium with high viscosity as well as medium easy to crystallize at freezing, frigidity, frigidness, cold, the heated jacketed liquid level assess can be picked in line with the user's requirements.

Model table
