Grade 2.5, splash proof, vibration resistant.
Service conditions:
Ambient temperature- 25～+55℃；
Relative humidity: <98%rh

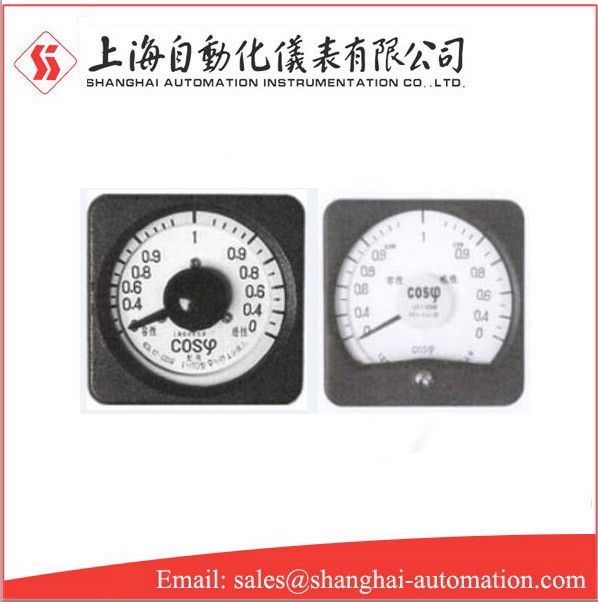

13L1-COSΦ 13T1-COSΦ 45L1-COSΦ 45T1-COSΦ Power-factor meter
Overview
Power factor meter instrument and fhl0 power factor converter are respectively embedded and protruding installed on ships, locomotives, power stations, mining metallurgy, petrochemical industry or other mobile power equipment devices to measure the power factor in the three intersecting flow network with rated working frequency of 50, 400, or 427hz and load balance.
Main tech data
Grade 2.5, splash proof, vibration resistant.
Service conditions:
Ambient temperature- 25～+55℃； Relative humidity: <98%rh
Measuring range:
Product name | Model | measuring range
| Rated voltage and access mode | Rated current |
Power-factor meter | 13L1-COSΦ | 0 capacitive -1-0 inductive
| 127, 200V (direct access); 380V (via 380 / 100 or 380 / 127V Pt access) | 5A |
13T1-COSΦ | ||||
45L1-COSΦ | ||||
45T1-COSΦ |
