Accuracy: level 1.5
Output current: 4-20mA, linear
Z large load: 1K Ω (24V power supply)
Power supply voltage: 24vdc+-20%

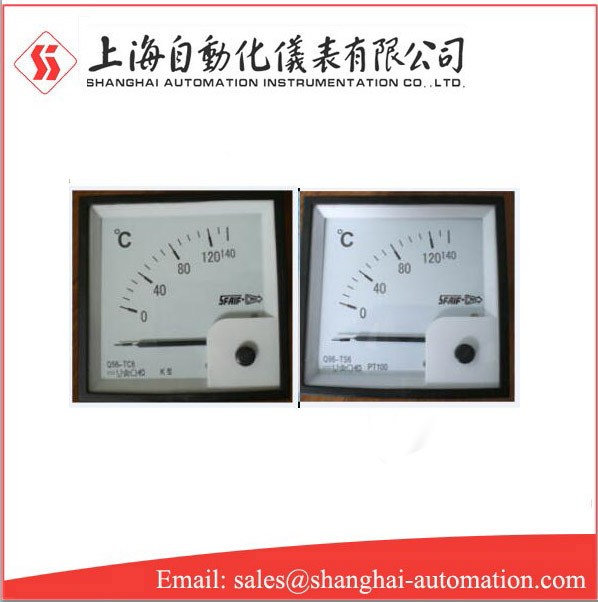

Q96-ZTC6 Q72-ZTC6 Q96-TC6 Q72-TC6 Temperature indicator for thermocouple
Overview
Q96-ZTC6 Q72-ZTC6 Q96-TC6 Q72-TC6 Temperature indicator for thermocouple is a magnetoelectric shaft tip and bearing structure. The AC meter is made of a transistor rectifier circuit attached to the DC meter, which consumes less power.
Main tech data of Q96-ZTC6 Q72-ZTC6 Q96-TC6 Q72-TC6 Temperature indicator for thermocouple
Accuracy: level 1.5
Output current: 4-20mA, linear
Z large load: 1K Ω (24V power supply)
Power supply voltage: 24vdc+-20%
Ambient temperature range: 0 ℃ - 60 ℃
Enclosure protection: according to ip42/52
Instrument deflection angle: 90 ° 240 °
Front panel size: 96x96mm 72x72mm
Compensating cable for sensor indicator connection
Instrument installation: fixed with 2 diagonal brackets
Product classification of Q96-ZTC6 Q72-ZTC6 Q96-TC6 Q72-TC6 Temperature indicator for thermocouple

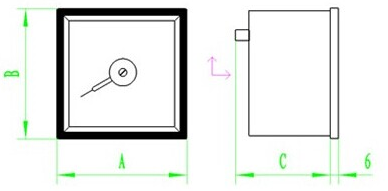

Model | Deviation | Dimensions(A*B*C) | Cutout(D*D) | Weight(kg) |
Q96-ZTC6 | 240 | 96*96*80 | 92+0.5×92+0.5 | 0.6 |
Q72-ZTC6 | 240 | 72*72*80 | 68+0.5×68+0.5 | 0.4 |
Q96-TC6 | 90 | 96*96*80 | 92+0.5×92+0.5 | 0.6 |
Q72-TC6 | 90 | 72*72*80 | 68+0.5×68+0.5 | 0.35 |
