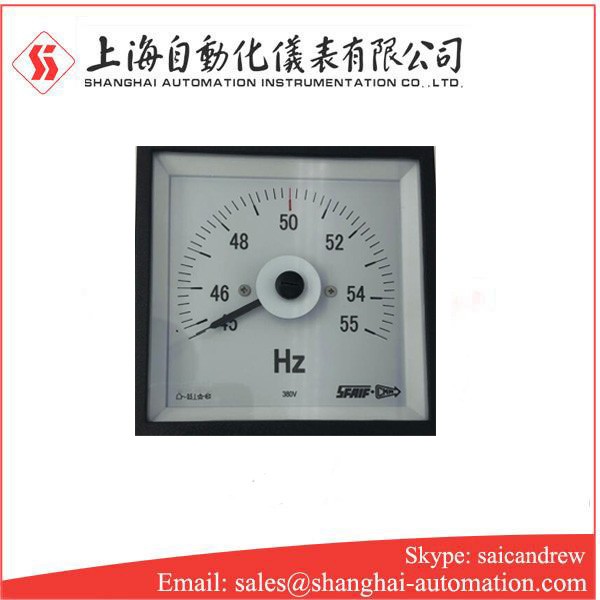

Q144-HCA Q96-HCA Q72-HCA Q96D-HCA Frequency meter
Overview
Q144-HCA frequency meter is a magnetoelectric system shaft tip and bearing structure. The AC meter is made by attaching a transistor rectifier circuit device to the DC meter, and the meter consumes less power.
Main technical performance of Q144-HCA Q96-HCA Q72-HCA Q96D-HCA Frequency meter
Ambient conditions: -25~ +40°C (AC meter 0 ~ +40°C)
Relative temperature: 25%~ 80%
Mechanical resistance performance: can withstand an acceleration of 150m/s and an impact frequency of 80-120 times per minute,
Withstand voltage: AC 50Hz, 2000V, lasted 1 minute.
Weight: less than 1Kg
Working position: vertical use.
Main features of Q144-HCA Q96-HCA Q72-HCA Q96D-HCA Frequency meter
1. The structure of the instrument movement is supported by magnetoelectric tension wires, which can rotate without embarrassment and work reliably.
2. High resistance to mechanical impact, and the vibration operates satisfactorily under the condition that the acceleration is less than or equal to 0.7g.
3. The instrument has high precision: the frequency meter is 0.5, the power factor meter is 3.0, and the others are 1.5.
4. The pointer spread angle is 250 degrees/270 degrees/240 degrees.
5. Working temperature: -25℃~55℃
6. The enclosure protection conforms to IP42, IP52, IP54. Oil mist, salt mist, bacteria coverage, dust, condensation, etc. are allowed.
7. Withstand voltage: circuit and shell AC2200V/1 minute.
8. Insulation resistance: DC 500V 1 minute greater than 100 megohms.
9. The surface is white and black, and it can also be made into black "borrowing light"
Main tech data of Q144-HCA Q96-HCA Q72-HCA Q96D-HCA Frequency meter
Accuracy: Class 1.5
Ambient temperature range: -25C- +55C
Shell protection: according to IP42/52
Vibration resistance: 0. 7g
Front panel size: 96x96mm, 72x 72mm, 14144m 48:x48mm three
Instrument deflection angle: 90° 240°
Instrument scale: a black scale on a white background can draw a red line if the set value is required.
Instrument installation: fixed with two diagonal brackets
Model | Deviation | Dimensions(A*B*C) | Cutout(D*D) | Weight(kg) | Remarks |
Q144-HCA | 90 | 144*144*80 | 138+0.5×138+0.5 | 0.65 | |
Q96-HCA | 96*96*80 | 92+0.5×92+0.5 | 0.6 | ||
Q72-HCA | 72*72*80 | 68+0.5×68+0.5 | 0.35 | ||
Q96D-HCA | 96*96*80 | 92+0.5×92+0.5 | 0.8 |
