Model: Q144-HZCA Q96-HZCA Q72-HZCA
Measurement accuracy: Grade 0.5
Withstand voltage: 2kV 50Hz for 1min
Operating ambient temperature: - 25 ° C~+55 ° C

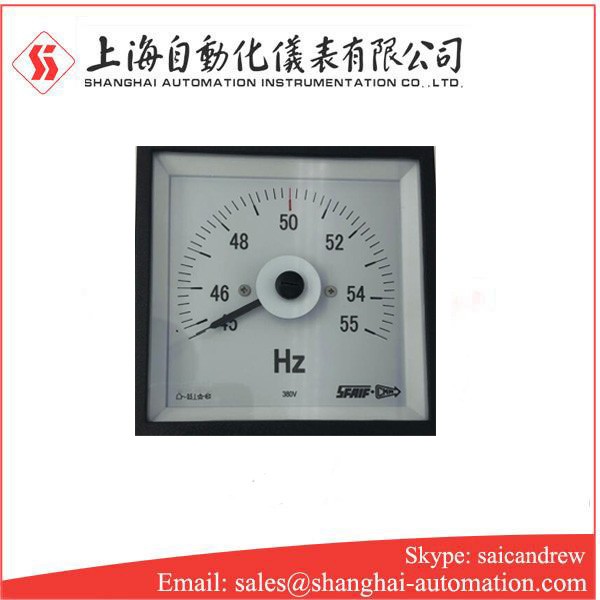

Q144-HZCA Q96-HZCA Q72-HZCA Frequency meter
Characteristics of Q144-HZCA Q96-HZCA Q72-HZCA Frequency meter
Q144-HZCA Q96-HZCA Q72-HZCA Frequency meter is used to measure the frequency of AC network. With out of limit alarm contact output.
Measurement accuracy: Grade 0.5
Withstand voltage: 2kV 50Hz for 1min
Operating ambient temperature: - 25 ° C~+55 ° C
Enclosure protection grade: IP44 IP56
Working vibration resistance: 2~100Hz acceleration ≤ 0.7g
Relative humidity: ≤ 98% RH
Instrument scale: black scale with white background; Red line can be drawn if setting value is required.
Model table of Q144-HZCA Q96-HZCA Q72-HZCA Frequency meter
Model | Unfold angle | Overall dimension | Opening size | Weight |
Q144-HZCA | 240° | 144×144×80 | 138+0.5×138+0.5 | 0.7 |
Q96-HZCA | 96×96×120 | 92+0.5×92+0.5 | 0.6 | |
Q72-HZCA | 72×72×80 | 68+0.5×68+0.5 | 0.4 |
