Model: Q96-TS6 Q72-TS6 Q96-ZTS6 Q72-ZTS6
Measurement accuracy: 1.5
Withstand voltage: 2KV 50Hz for 1 minute
Operating ambient temperature: - 25 ℃ ~ + 55 ℃

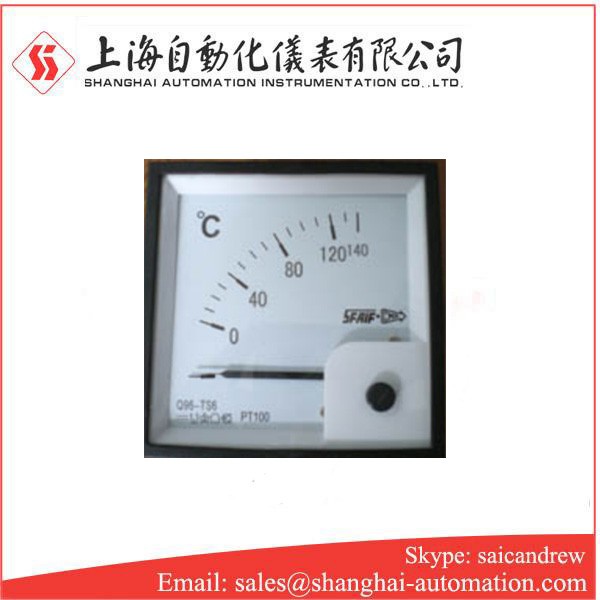

Q96-TS6 Q72-TS6 Q96-ZTS6 Q72-ZTS6 Temperature indicator for thermistor
Overview of Q96-TS6 Q72-TS6 Q96-ZTS6 Q72-ZTS6 Temperature indicator for thermistor
Thermal resistance thermometer (TS6 PT100 type) is used to measure the temperature of instruments on board. It is a series of q-series electric quantity and non electric quantity measuring indicating instruments
Working principle of Q96-TS6 Q72-TS6 Q96-ZTS6 Q72-ZTS6 Temperature indicator for thermistor
The temperature measurement principle of thermal resistance is based on the characteristic that the resistance value of conductor or semiconductor changes with temperature to measure temperature and temperature related parameters. Most of the thermal resistors are made of pure metal materials. Platinum and copper are most used. Nickel, manganese and rhodium have been used to make thermal resistors. Thermal resistance usually needs to transmit the resistance signal to computer control device or other secondary instruments through leads.
Features of Q96-TS6 Q72-TS6 Q96-ZTS6 Q72-ZTS6 Temperature indicator for thermistor
Used with PT100 for direct measurement.
Accurate measurement
Small size, easy to measure,
Small weight
Easy installation
Main tech data of Q96-TS6 Q72-TS6 Q96-ZTS6 Q72-ZTS6 Temperature indicator for thermistor
Model: Q96-TS6 Q72-TS6 Q96-ZTS6 Q72-ZTS6
Measurement accuracy: 1.5
Withstand voltage: 2KV 50Hz for 1 minute
Operating ambient temperature: - 25 ℃ ~ + 55 ℃
Enclosure protection * * *: IP44
IP56: applicable to q72 with sealing cover Q96 instrument.
Working vibration resistance: 2 ~ 100Hz acceleration ≤ 0.7G
Relative humidity: ≤ 98% RH
Large load: 1K Ω (24V power supply)
Power supply voltage: DC24V ± 20%
Output current: 4 ~ 20mA, linear
Sensor indicator connection; Three wire system
Model | Deviation | Dimensions(A*B*C) | Cutout(D*D) | Weight(kg) |
Q96-ZTS6 | 240 | 96*96*80 | 92+0.5×92+0.5 | 0.6 |
Q72-ZTS6 | 240 | 72*72*80 | 68+0.5×68+0.5 | 0.4 |
Q96-TS6 | 90 | 96*96*80 | 92+0.5×92+0.5 | 0.6 |
Q72-TS6 | 90 | 72*72*80 | 68+0.5×68+0.5 | 0.35 |
Note: Any special design or question of Q96-TS6 Q72-TS6 Q96-ZTS6 Q72-ZTS6 Temperature indicator for thermistor, kindly contact the manufacturer for more details.
