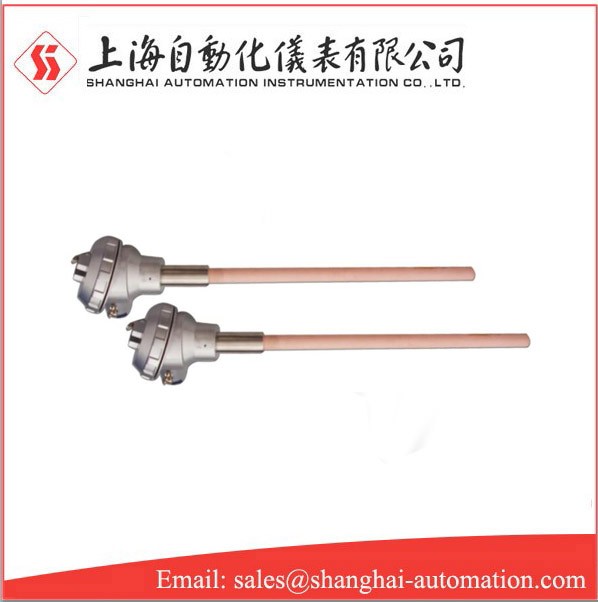

WRP-130 WRP-131 WRP2-130 WRP2-131 High temperature thermocouple

WRP-130 WRP-131 WRP2-130 WRP2-131 High temperature thermocouple

Overview

WRP-130 WRP-131 WRP2-130 WRP2-131 High temperature thermocouple is a precision instrument for measuring temperature by changing resistance with temperature.

Application equipment of WRP-130 WRP-131 WRP2-130 WRP2-131 High temperature thermocouple

Chemical machinery equipment, pipeline equipment, electric heating equipment, motor equipment, boiler smelting equipment, plastic processing equipment, steel manufacturing equipment, metal products equipment, coal-fired steam boiler equipment, aluminum manufacturing equipment, chemical machinery equipment, glass manufacturing equipment

Principle of WRP-130 WRP-131 WRP2-130 WRP2-131 High temperature thermocouple

Thermal resistance is to measure the temperature by using the characteristics that the resistance changes with the temperature of the material. It is the most commonly used temperature detector in the middle and low temperature zone. Its main characteristics are high measurement accuracy and stable performance. The platinum heat resistance has the highest measurement accuracy. It is not only widely used in industrial temperature measurement, but also made into a standard reference instrument. When the resistance value changes, the working instrument will display the temperature value corresponding to the resistance value.

Application equipment

Temperature recorder, temperature transmitter. Temperature isolator, temperature contactor, electronic computer, thermocouple compensation wire, temperature digital display

Technical parameter of WRP-130 WRP-131 WRP2-130 WRP2-131 High temperature thermocouple

1. Product executive standards IEC584, IEC751, JB/T5582-1991

2. Graduation S

3. Temperature sensing element: (platinum rhodium 10 platinum)

4. Type of junction box: blowout prevention type

5. Installation type: no fixing

6. Casing material: high aluminum

7. Length range:

three hundred × 150、350 × 200、400 × 250、450 × 300、550 × 400、650 × 500、900 × seven million five hundred and one thousand one hundred and fifty × 1000、1650 × 1500、2150 × two thousand

8. Casing diameter: Φ sixteen

9. Temperature range: 0~1300

10. Response time:<150s
