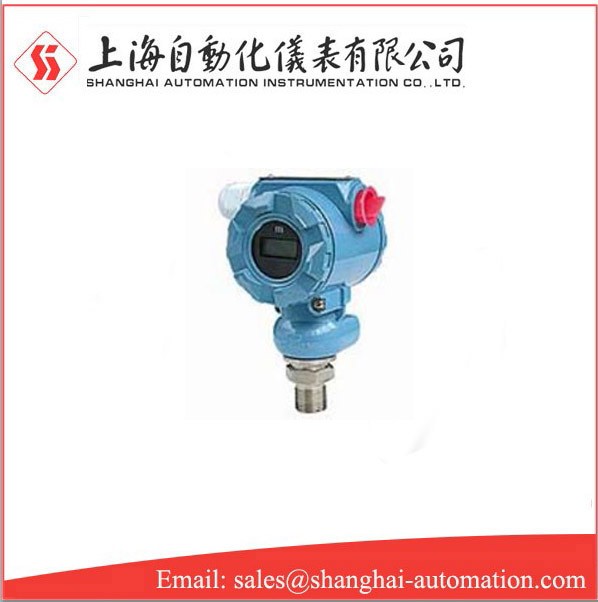

SH2188 Pressure transmitter

SH2188 Pressure transmitter

Main tech data of SH2188 Pressure transmitter

Objects used: liquid, gas and steam  Liquids, gases and vapors

Range: 2: 0-0.02MPa~0.1MPa   3: 0-0.1MPa ~ 0. 5MPa  4: 0-0. 2MPa ~ 1MPa .  5: 0-1MPa~5Mpa  6: 0-2MPa ~ 10MPa  7: 0-10MPa ~ 50MPa

Output: 4~20mA DC

Working power supply: 12~36VDC

Output indication accuracy: ± 2%

Migration: The transmitter can be used as a positive zero migration of 50% of the calibration range, but the upper limit value of the calibration range shall not exceed the upper limit range limit. Negative migration is not allowed

Overvoltage: 2 times of measuring range limit (except measuring range 7:0-50MPa is 1.5 times)

Operating temperature range: - 25C~+80C

Storage temperature range: - 40C~- 120C

Humidity range: 0~100% relative humidity

Starting time: 2 seconds, no preheating required

Accuracy: range taxi 0.20%

Including linearity, variation and repeatability

Temperature influence: zero temperature error is 0.75%/55 of the maximum range

The comprehensive temperature error is 1.1%/55C of the maximum range

Overview of SH2188 Pressure transmitter

The SH2188 transmitter consists of a piezoresistive sensor and a signal conversion module. The core component of the sensor is a single crystal silicon chip. When the single crystal silicon chip is under pressure, its resistivity will change. Four resistors are formed by diffusion on the silicon chip through the semiconductor plane process, which are connected to form a bridge. Under the action of a constant current, a voltage signal proportional to the pressure signal can be output. The signal conversion module processes the voltage signal of the sensor, Convert to 4~20mA standard signal.

SH2188 pressure transmitter can be used to measure the pressure, liquid level and other parameters of fluid (liquid, gas and steam), and convert the measured signal into 4~20mA standard signal output, which can be used as the input signal of indication, recording and regulator. SH2188 pressure transmitter has the advantages of small volume, light weight, high accuracy, low price, etc. It can be equipped with on-site indicating ammeter, zero point migration, range expansion and other functions, and can be intrinsically safe and explosion-proof, It has all functions of industrial pressure transmitter.
