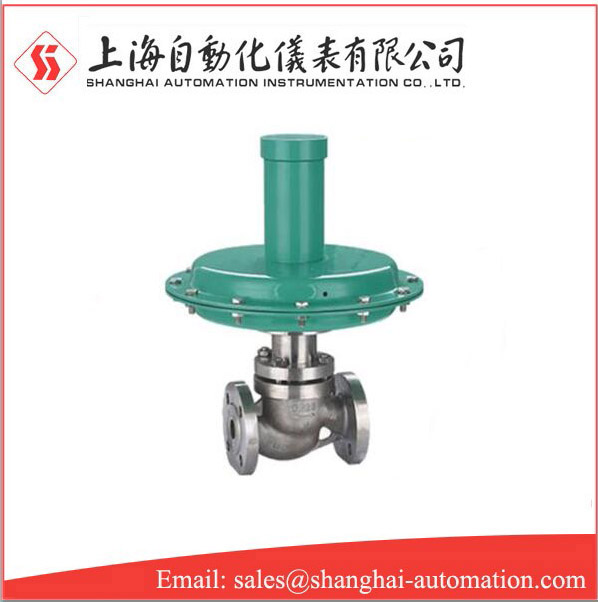

ZZVP ZZVP-10 ZZVP-16 Self-actuated control valve

Model: ZZVP ZZVP-10 ZZVP-16
Body material:WCB, 304, 316
Nominal diameter: DN15-100mm
Operating temperature: -20~80℃;

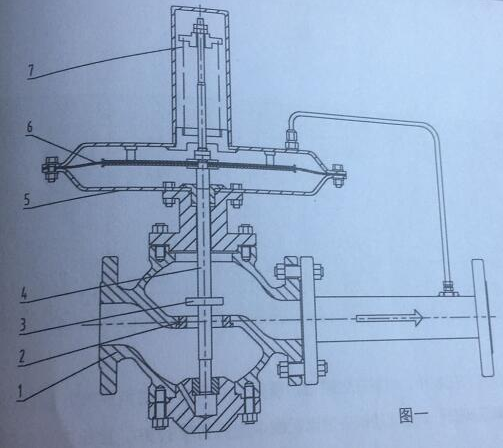

Overview of ZZVP ZZVP-10 ZZVP-16 Self-actuated control valve

ZZV self-operated differential (micro) pressure regulator is a kind of actuator products that do not need additional energy. Can be used for nominal pressure PN01, PN10. Differential (micro) pressure can be adjusted in stages. From 50mm.W.C to 0.1mpa. Its use is very wide, can be used in industrial combustion furnace system, control two kinds of materials, such as gas, air flow ratio, to achieve ideal combustion. Used for sealing oil system of hydrogen cooled generator set to control pressure difference between sealing oil and hydrogen to ensure reliable sealing. When the differential pressure valve low pressure end through the atmosphere is micro pressure valve (differential pressure valve negative pressure, end pressure, force is zero).

The characteristics of ZZVP ZZVP-10 ZZVP-16 Self-actuated control valve

· Adjust the set value without stopping production;

· No packing, there is no friction when the stem moves up and down, and the upper seal is absolutely reliable;

· The actuator is very sensitive, and the slightest pressure change can be detected;

· The valve body is in four-way form, so type K and B can be used as one valve body

The model selection of ZZVP ZZVP-10 ZZVP-16 Self-actuated control valve

Body material: WCB, 304 stainless steel, 316 stainless steel

Nominal diameter: DN15-100mm

Pressure range: GB (PN1.6mpa), American standard (Class150), JIS 10K standard

Spool type: single seat (P)

Operating temperature: -20~80℃;

Flow characteristics: fast open

Z	Actuator class
Z	Valve type: independent type
V	Valve performance characteristics: micro pressure
P	Valve structure features: single seat
10	Nominal pressure PN
16	Nominal pressure PN

Main data sheet of ZZVP ZZVP-10 ZZVP-16 Self-actuated control valve

Nominal diameter DN	20	25	32	40	50	65	80	100
Rated flow coefficient Kv	8	11	20	32	50	80	100	160
Rated stroke (mm)	6	8	8	10	10	15	15	20
Nominal pressure PN (Mpa)	1.0, 1.6
Pressure regulating range (Kpa)	0.5~5.5 5~10 9~14 13~19 18~24 22~28 26~33 31~38 36~44 42~51 49~58 56~66
Permissible medium temperature	≤80
Adjust the accuracy%	≤10
Inherent flow characteristic	Quick open
Disclosure level	GB/T4213 IV Class
