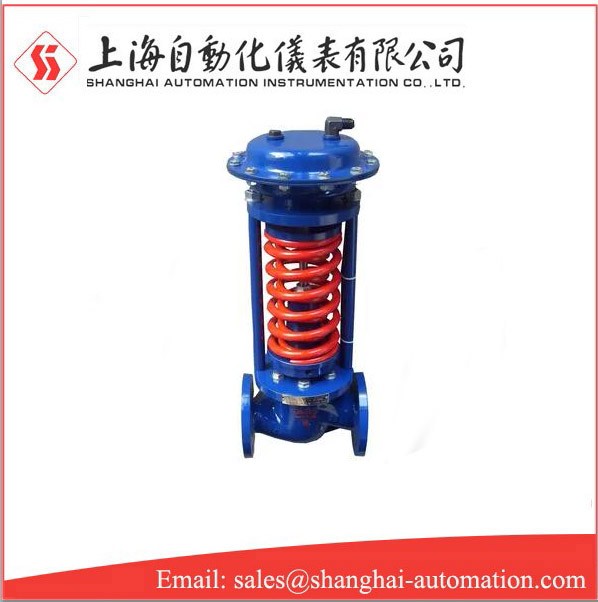

ZZYP ZZYP-16 ZZYP-40 Self-actuated control valve

Model: ZZYP ZZYP-16 ZZYP-40
Valve body: ZG230-450, ZG1Cr18 Ni9Ti, ZGCr18 Ni12Mo2Ti
Valve element: 1Cr18 Ni9Ti, Cr18 Ni12Mo2Ti
Valve seat: 1Cr18 Ni9Ti, Cr18 Ni12Mo2Ti

ZZYP ZZYP-16 ZZYP-40 Self-actuated control valve is an energy-saving control device that does not require external driving energy, relies on the pressure of the regulated medium itself as the power source and its medium pressure change, and automatically adjusts according to the preset set value. It integrates many functions of detection, control and execution into one valve, forming an independent instrument control system.

Energy saving automatic control system without additional driving energy, low equipment cost, suitable for explosive environment; Simple structure and small maintenance workload; The set point is adjustable and the range is wide, which is convenient for users to continuously adjust within the set range; Compared with the cylinder type mechanism, the diaphragm type actuator has higher detection accuracy and sensitive action; The pressure balance mechanism is adopted in the valve to make the regulating valve responsive, precise in control and large in allowable differential pressure.

Main parts and materials of ZZYP ZZYP-16 ZZYP-40 Self-actuated control valve

Valve body: ZG230-450, ZG1Cr18 Ni9Ti, ZGCr18 Ni12Mo2Ti

Valve element: 1Cr18 Ni9Ti, Cr18 Ni12Mo2Ti

Valve seat: 1Cr18 Ni9Ti, Cr18 Ni12Mo2Ti

Valve rod: 1Cr18 Ni9Ti, Cr18 Ni12Mo2Ti

Membrane cover: A3, A3 steel coated with tetrafluoroethylene stainless steel

Filler: nitrile, ethylene propylene, fluorine, oil resistant rubber

Normal Size DN	20	25	32	40	50	65	80	100	125	150	200	250	300
Rated flow coefficient (KV)	7	11	20	30	48	75	120	190	300	480	760	1100	1750
Rated stroke (mm)	8		10		14	20		25	40		50	60	70
Nominal pressure PN (Mpa)	1.6、4.0、6.4
Pressure regulation range (MPa)	15～50 40～80 60～100 80～140 120～180 160～220 200～260 240～300 280～350 330～400 380～450 430～500 480～560 540～620 600～700 680～800 780～900 880～1000 980～1500 1000～2500
Flow characteristics (℃)	Quick open
Adjustment accuracy (%)	±5
Operating temperature (℃)	≤350
Hard seal (1/h)	Single seat: ≤ 10 ˉ 4 Rated capacity of valve (Class IV); Double seat, sleeve: ≤ 5 × ten ˉ Rated capacity of 3 valves (Class II)
Soft seal (m1/h)	0.15		0.3		0.45	0.6	0.9		4.0		6.75	11.1	16
Decompression ratio maximum	10
Minimum	1.25
