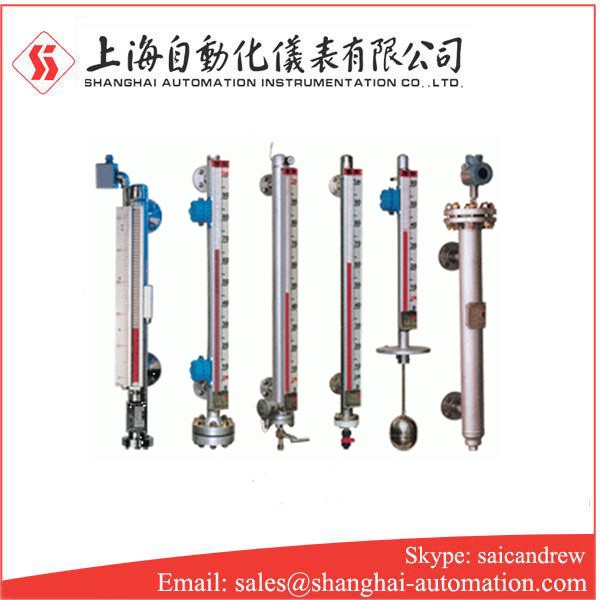

UQC-C13 UQC-C14 UQC-C15 Magnetic level indicator

UQC-C13 UQC-C14 UQC-C15 Magnetic level indicator

Overview of UQC-C13 UQC-C14 UQC-C15 Magnetic level indicator

The magnetic level indicator is a reliable safety detection instrument. Due to the isolation and sealing structure with magnetic coupling. It is especially suitable for flammable, explosive and corrosive toxic liquid level detection. Thus, the liquid level detection method in the original complex environment becomes simple, reliable and safe.

The magnetic level indicator has the direct reading characteristic of local display. Multiple groups of liquid level gauge combinations are not required. There is a single body for full-scale measurement. The equipment has few openings, clear display and eye-catching signs. Intuitive reading and other advantages. When the liquid level gauge is directly equipped with a display instrument, the intermediate transmission of the signal detection of the system can be omitted, so as to improve its transmission accuracy.

Composition of UQC-C13 UQC-C14 UQC-C15 Magnetic level indicator

The magnetic level indicator is mainly composed of magnetic ball, sensor and transmitter. When the magnetic levitation ball floats up and down along the conduit with the change of liquid level, the magnetic steel in the floating ball attracts the dry reed tube at the corresponding position in the sensor to change the total resistance (or voltage) of the sensor, and then the transmitter converts the changed resistance (or voltage) signal into 4-20mA current signal for output XMT series digital display controller (or DSB light column digital display instrument) produced by our factory can be selected to measure the liquid level remotely, and the upper and lower limit alarms can be set on the display instrument to realize the position control of the liquid level, or the liquid level constant value regulation system can be composed of other regulators to realize the PID continuous regulation of the liquid level.

Working principle of UQC-C13 UQC-C14 UQC-C15 Magnetic level indicator

The magnetic level indicator adopts the principle of connector to introduce the liquid in the container into the main body of the liquid level gauge at the same height. The floating ball assembly floating in the main body is based on the principle of buoyancy and magnetic coupling. The display of the liquid level position of the turnover column which can reflect the magnetic phenomenon is attached outside the main body. With the change of the liquid level in the main body, the height of the floating ball assembly also changes accordingly. Thus, the turnover column outside the main body is turned 180 degrees. When the liquid level rises, the turnover column changes from white to red. When the liquid level falls, the turnover column changes from red to white. The red and white boundary of the display is the actual height of the medium liquid level in the container.

Features of UQC-C13 UQC-C14 UQC-C15 Magnetic level indicator

1. It is applicable to the liquid level measurement of liquid medium in the container. In addition to on-site display, it can also be equipped with remote transmitter, liquid level controller and other functions.

2. The display is intuitive and eye-catching, and the display direction can be changed according to the user's requirements.

3. The measurement range is large and is not limited by the height of the container.

4. The display assembly is completely isolated from the measured medium, so it has good sealing, reliable and safe.

5. Simple structure, convenient installation and simple maintenance.

6. Corrosion resistance and explosion-proof.

Main tech data of UQC-C13 UQC-C14 UQC-C15 Magnetic level indicator

Measurement range: 300 ~ 15000mm (side mounted: 300 ~ 15000mm; top (bottom) mounted: 300 ~ 6000mm)

Accuracy: 10mm

Working pressure: ≤ 2.5MPa (normal)

≤ 9.6mpa (high pressure)

≤ 0.6MPa (anti-corrosion type)

Medium density: ≥ 0.45g/cm3

Medium density difference: ≥ 0.15 g / cm3 (measurement interface)

Medium temperature: - 20 ～＋ 250 ℃ (up to 450 ℃ for special requirements)

Medium viscosity: ≤ 0.4pa · S. for the medium with high viscosity or the medium easy to crystallize at low temperature, the heated jacketed liquid level gauge can be selected according to the user's requirements.
