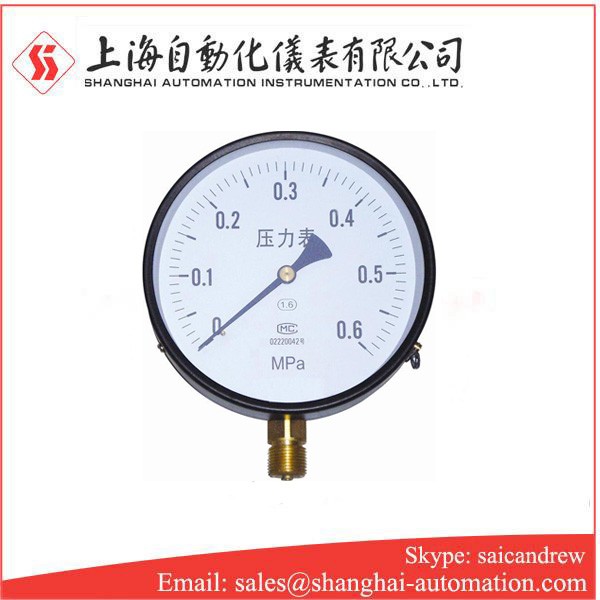

Y-40 Y-60 Y-100 Pressure gauge

Model: Y-40 Y-60 Y-100
Diameter of dial: 40, 60, 100mm
Operating temperature: - 40 ℃ ~ 70 ℃
Executive standard: GB / t1226-2001

Overview

Ordinary pressure gauge is a local indicating pressure gauge, which locally displays the pressure without remote transmission, display and adjustment functions.

In the process of industrial process control and technical measurement, because the elastic sensitive element of general pressure gauge has the characteristics of high mechanical strength, convenient production, simple installation and convenient reading, general pressure gauge has been more and more widely used.

Ordinary pressure gauge is suitable for measuring the pressure and vacuum of liquid, gas or steam without explosion, crystallization, solidification and corrosion to copper and copper alloy.

Working principle

Through the elastic deformation of Bourdon tube, the sensitive element in the gauge, the pressure gauge converts the elastic deformation of Bourdon tube into rotary motion through the conversion mechanism of movement in the gauge, causing pointer deflection to display the pressure.

Spring is divided into C-type tube, coil reed tube, spiral tube and other types. Generally, cold work hardening materials (commonly used materials are copper alloys) have high plasticity in the annealed state, and high elasticity and strength are obtained after cold work hardening and qualitative treatment.

The section of the C-type Bourdon tube sensitive element is elliptical, and the pressure of the measuring medium acts on the inner side of the Bourdon tube, so the elliptical section of the Bourdon tube will tend to a circular section. Due to the small deformation of Bourdon tube, a certain ring stress is formed. This ring stress causes the Bourdon tube to extend outward. Because the head of the elastic Bourdon tube is not fixed, it will produce small deformation.

Features

1. The utility model has the advantages of simple structure, reliability and durability, and convenient use and maintenance.

2. Small appearance, light weight, wide measurement range, obvious indication and direct reading.

3. It has sufficient accuracy and good indication stability.

4. Simple wiring and low cost.

Main tech data

Simple wiring and low cost. Operating temperature: - 40 ℃ ~ 70 ℃

Anti vibration of working environment: V · h · 3;

The relative humidity shall not be greater than 90%;

Temperature influence: no more than 0.4% / 10 ℃ (the service temperature deviates from 20 ± 5 ℃);

Executive standard: GB / t1226-2001;

Model	Y-40	Y-60	Y-100	Y-150	Y-200	Y-250
Nominal diameter DN	Φ40	Φ60	Φ100	Φ150	Φ200	Φ250
Connection Screw	M10*1	M14*1.5	M20*1.5
Accuracy class	2.5			1.5
Measure range(Mpa)	0-0.1, 0.16, 0.25, 0.4, 0.6, 1, 1.6, 2.5, 4, 6				0-0.6, 1, 1.6, 2.5, 4, 6
	0-10, 16, 25		0-10, 16, 25, 40, 60
	-0.1-0		-0.1-0, -0.1-0.06, 0.15, 0.3, 0.5, 0.9, 1.5, 2.4

Model	D(Φ)	d	D1(Φ)	L	D0(Φ)	B	H	D2(Φ)	H1	H2
Y-40	40	M10*1	4	10		58	23			8.5
Y-40Z	40	M10*1	4	10		44	23			0
Y-60	60	M14*1.5	5	14		56	28			10.5
Y-60Z	60	M14*1.5	5	14		56	28			0
Y-60ZT	60	M14*1.5	5	14	72	56	28	5	24	0
Y-100	60	M20*1.5	6	20		90	42			16
Y-100ZT	100	M20*1.5	6	20	118	83	43	5.5	25	24
Y-150	150	M20*1.5	6	20		116	44			16
Y-150ZT	150	M20*1.5	6	20		85	45	5.5	27	35
Y-200	200	M20*1.5	6	20		140	46			16
Y-250	250	M20*1.5	6	20		170	60
